Cooperation Cases

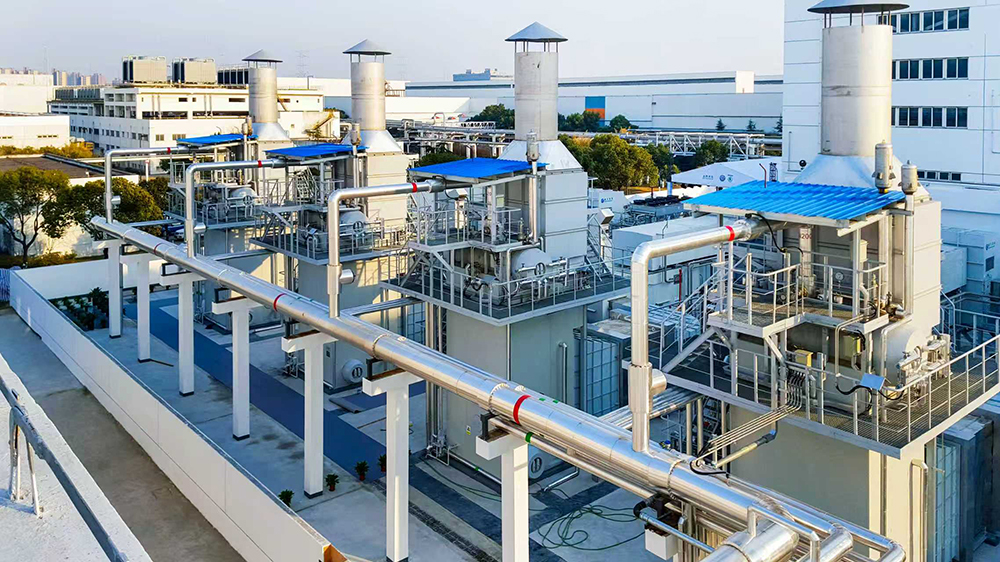

Shanghai Volkswagen Xiangyuan Flue-Type Waste Heat Boiler
1.The waste heat boiler output is 14,950 kg/h.
2.The waste heat utilization rate of the boiler series is 77.29%.

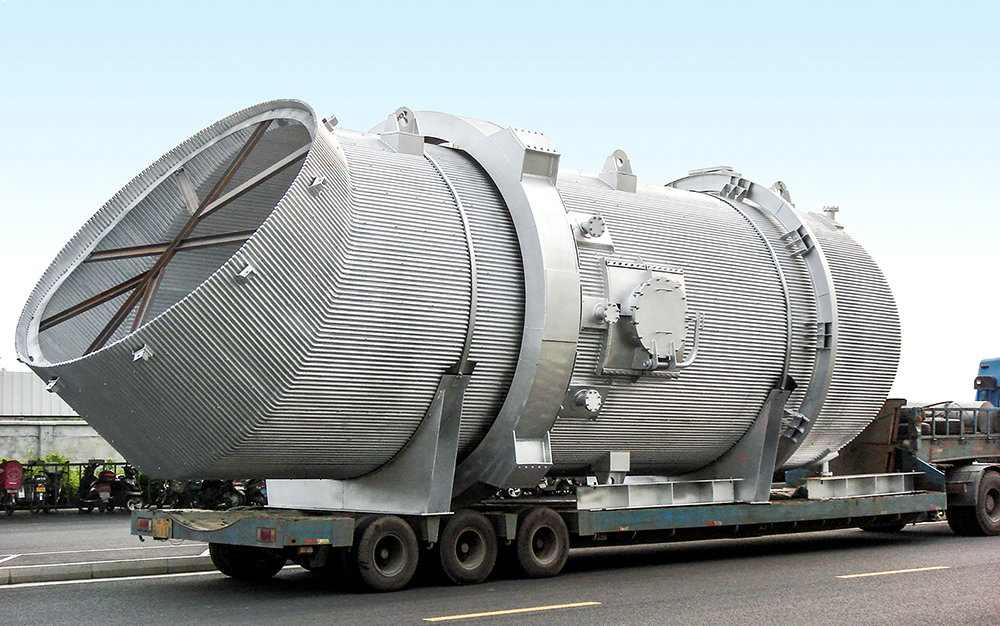

250-ton Oxygen Converter Waste Heat Boiler at Baowu Group's Baosteel Headquarters
This boiler is designed and manufactured based on technology introduced from Germany's Oschatz, with a rated capacity of 110 t/h.
Features: The boiler system adopts a combined circulation mode integrating low-pressure forced circulation, medium-pressure forced circulation and natural circulation, which ensures energy efficiency, safety, reliability and stable operation of the boiler.

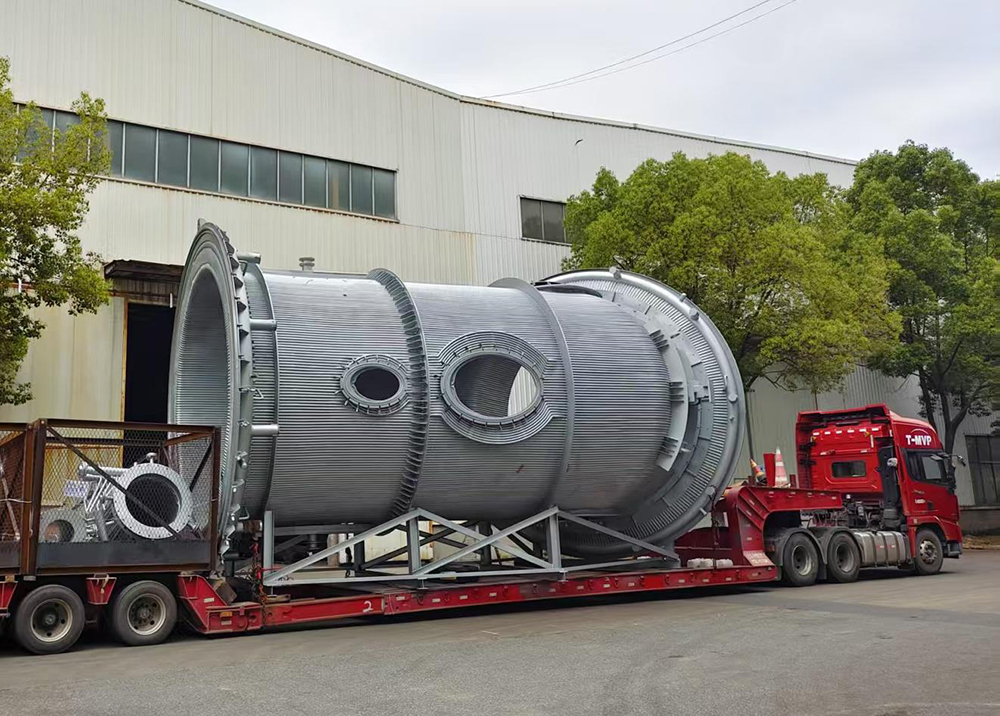

350-ton Oxygen Converter Waste Heat Boiler at Baowu Group's Baosteel Zhanjiang (China's Largest)
Rated Pressure: 4.0 MPa
Medium Working Temperature: 270°C
Capacity: 150 t/h
Features: The optimized mobile hood, redesigned by our company, boasts an extended service life and facilitates easy maintenance, effectively reducing operating costs and boosting the economic benefits of the steel plant.
300-ton Oxygen Converter Waste Heat Boiler at Ma'anshan Iron & Steel Co., Ltd. (Baowu Group Subsidiary)
Rated Working Pressure: 4.1 MPa
Rated Working Temperature: 253°C
Peak Evaporation Capacity: 135 t/h
Features: This boiler is designed and manufactured incorporating Japanese technology. The system adopts an operation mode combining medium-pressure forced circulation and medium-pressure natural circulation, ensuring safe, reliable and stable performance.
| Performance List of Flue-type Waste Heat Boilers | ||||||
| Name | Evaporation Capacity (t/h) | Pressure (MPa) | Temperature (℃) | Quantity (Sets) | Production Date | User Unit |
| Complete Design and Supply of 250t Converter Vaporization System | 280 | 3.2 | 239 | 1 | 2025.8 | Shandong Iron and Steel Group Yongfeng Lingang Co., Ltd. |
| Full Dry-type Waste Heat Recovery Boiler | 70 | 4 | 251 | 2 | 2025.5 | Shougang Jingtang United Iron and Steel Co., Ltd. |
| Reduction Furnace Flue Gas Treatment System (Indonesia) | 35.5 | 4.7 | 261 | 1 | 2025 | Zhejiang Huayou Import and Export Company |
| Vaporization Flue and Steam Drum for Smelting Reduction Furnace | 154 | 4.4 | 257 | 2 | 2024.11 | Shandong Yihong New Material Technology Co., Ltd. |
| Full Dry-type Waste Heat Recovery Boiler for No.3 Furnace | 27.5 | 2.4 | 224 | 1 | 2024.9 | Baotou Iron and Steel (Group) Co., Ltd. |
| Complete Supply of Flue, Steam Drum, Piping and Other Equipment for 150t Converter Renovation Project | 59 | 2.45 | 225 | 2 | 2024.2 | Tangshan Ganglu Iron and Steel Co., Ltd. |
| 240t Converter Vaporization Flue | 125 | 3.82 | 250 | 1 | 2024.1 | Baotou Iron and Steel (Group) Co., Ltd. |
| Vaporization Flue for Primary Gas Purification System of 3×550,000t Smelting Reduction Furnace | 125 | 4.4 | 257 | 2 | 2023.11 | Hebei Xinggang Technology Co., Ltd. |
| Complete Supply of Flue, Steam Drum, Spherical Heat Accumulator, Piping and Other Equipment for 180t Converter | 121 | 2.45 | 225 | 2 | 2023.12 | Jing'an Iron and Steel Group |
| Complete Supply of Flue, Steam Drum, Spherical Heat Accumulator, Piping and Other Equipment for 210t Converter | 210 | 2.45 | 225 | 2 | 2022 | Southern Hebei Iron and Steel Group Co., Ltd. |
| Complete Supply of Flue, Steam Drum, Piping and Other Equipment for 225t Converter | 150 | 4.3 | 256 | 2 | 2021-2022 | Tangshan Ganglu Iron and Steel Co., Ltd. |
| Movable Hood for 350t Converter Flue | 130 | 4 | 248 | 1 | 2019 | Guangdong Zhanjiang Iron and Steel Co., Ltd. |
| Flue, Steam Drum and Deaerator for 250t Converter | 130 | 4 | 248 | 1 | 2004~2019 | Baoshan Iron & Steel Co., Ltd. |
| 250t Converter Flue and Steam Drum | 125 | 4 | 252 | 3 | 2007~2016 | Handan Iron and Steel Co., Ltd. |
| 300t Converter Flue and Steam Drum | 145 | 4.1 | 253 | 3 | 2005~2019 | Maanshan Iron and Steel Co., Ltd. |
| 300t Converter Flue and Steam Drum | 145 | 3.7 | 247 | 2 | 2013 | Formosa Plastics (Vietnam) (SPCO) |
| 250t Converter Flue and Steam Drum | 125 | 4 | 252 | 3 | 2007~2016 | Meishan Iron and Steel Co., Ltd. |
| 250t Converter Flue and Steam Drum | 135 | 2.9 | 234 | 2 | 2017~2018 | Wuhan Iron and Steel Group Co., Ltd. |
| 350t Water-cooled Flue | 110 | 0.8 | 55 | 3 | 2006~2013 | United States Steel Corporation (USS) |
| 300t Converter Flue | 135 | 3.7 | 247 | 2 | 2007 | Hyundai (South Korea) |
| 300t Converter Steam Drum | 130 | 4.4 | 257 | 4 | 2007 | Shougang Beijing |
| 300t Converter Flue | 180 | 4.1 | 253 | 2 | 1996 | Nippon Steel |
| Complete Equipment Including Flue, Steam Drum, Piping and Others for 190t Converter | 200 | 3.82 | 249 | 3 | 2020 | Zhongtian Iron and Steel Group (Nantong) Co., Ltd. |
| Complete Equipment Including Flue, Steam Drum, Piping and Others for 210t Converter | 140 | 3.82 | 249 | 5 | 2021 | Guangxi Shenglong Iron and Steel Co., Ltd. |
| 220t Converter Flue and Steam Drum | 216 | 4 | 252 | 2 | 2019 | Hebei Taihang Iron and Steel Co., Ltd. |
| Complete Equipment Including Flue, Steam Drum, Deaerator and Others for 210t Converter | 120 | 3.82 | 249 | 4 | 2019 | Liuzhou Iron and Steel Fangchenggang Co., Ltd. |
| 210t Converter Flue and Steam Drum | 160 | 3.6 | 246 | 3 | 2016~2019 | Shandong Iron and Steel Group Rizhao Iron and Steel Co., Ltd. |
| Complete Equipment Including Flue, Steam Drum, Piping and Others for 210t Converter | 150 | 4.1 | 253 | 1 | 2019 | Tangshan Ruifeng Iron and Steel Co., Ltd. |
| 220t Converter Flue and Steam Drum | 216 | 4 | 252 | 5 | 2017 | Hebei Zongheng Group Fengnan Iron and Steel Co., Ltd. |
| 210t Converter Flue and Steam Drum | 120 | 4 | 252 | 2 | 2008~2016 | Jinan Iron and Steel Co., Ltd. |
| 210t Converter Flue and Steam Drum | 110 | 3.2 | 239 | 6 | 2008~2020 | Chongqing Iron and Steel Co., Ltd. |
| 210t Converter Flue | 110 | 4.1 | 253 | 4 | 2007~2016 | Baotou Iron and Steel (Group) Co., Ltd. |
| 210t Converter Flue and Steam Drum | 110 | 3.2 | 239 | 3 | 2010~2014 | Pangang Group Xichang Iron and Steel |
| 210t Converter Flue and Steam Drum | 120 | 2.9 | 234 | 2 | 2008~2009 | Hunan Valin Lianyuan Iron and Steel Co., Ltd. |
| 200t Converter Flue | 192 | 2.9 | 234 | 2 | 2005 | Wuhan Iron and Steel Group Co., Ltd. |
| 180t Converter Flue | 66.4 | 2.45 | 225 | 4 | 2005~2019 | Jiangsu Shagang Group |
| 180t Converter Flue and Steam Drum | 58 | 4 | 252 | 2 | 2018~2019 | Benxi Iron and Steel Plate Co., Ltd. |
| 180t Converter Flue, Steam Drum and Heat Accumulator | 66.4 | 2.45 | 225 | 2 | 2005~2015 | Tianjin Iron Works |
| 180t Converter Flue, Steam Drum and Heat Accumulator | 66.4 | 2.45 | 225 | 2 | 2006 | Wuhan Iron and Steel Group Co., Ltd. |
| 180t Converter Flue, Steam Drum and Heat Accumulator | 66.4 | 2.45 | 225 | 2 | 2003 | Ningbo Iron and Steel Co., Ltd. |
| 150t Converter Flue | 160 | 2.45 | 97 | 1 | 2011~2016 | Laiwu Iron and Steel Co., Ltd. |
| Complete Equipment Including Flue, Steam Drum, Heat Accumulator, Piping and Others for 150t Converter | 58.5 | 2.45 | 225 | 2 | 2019 | Shiheng Special Steel Co., Ltd. |
| Complete Equipment Including Flue, Steam Drum, Heat Accumulator, Piping and Others for 150t Converter | 80 | 3.2 | 239 | 2 | 2022 | Maanshan Special Steel Co., Ltd. |
| 150t Converter Flue | 160 | 2.45 | 97 | 6 | 2003~2016 | Benxi Iron and Steel Plate Co., Ltd. |
| 150t Converter Flue, Steam Drum and Heat Accumulator | 120 | 2.45 | 225 | 3 | 2007~2015 | Chengde Xinxin Vanadium and Titanium Co., Ltd. |
| 150t Converter Flue | 52 | 2.45 | 225 | 2 | 2012~2015 | Meishan Iron and Steel Company |
| 150t Converter Flue | 160 | 2.45 | 97 | 6 | 2009~2016 | Liuzhou Iron and Steel Co., Ltd. |
| 150t Converter Flue | 160 | 2.45 | 97 | 1 | 2011~2016 | Bayi Iron and Steel Co., Ltd. |
| 150t Converter Flue | 120 | 2.45 | 225 | 2 | 2007~2016 | Anyang Iron and Steel Co., Ltd. |
| 150t Converter Flue and Steam Drum | 66.4 | 2.45 | 225 | 3 | 2006~2009 | Baoshan Iron & Steel Co., Ltd. |
| 150t Converter Flue | 80 | 4.1 | 253 | 2 | 2002~2004 | Nippon Steel Indonesia P.T.ANTAM Tbk Fe-Ni No.3 Smelter |
| Flue and Steam Drum for 150t Stainless Steel-making Converter | 52 | 2.45 | 225 | 1 | 2005 | POSCO (Zhangjiagang) |
| 150t Converter Flue, Steam Drum and Heat Accumulator | 66.4 | 2.45 | 225 | 3 | 2007 | Cangzhou Zhongtie Iron and Steel |
| 120t Converter Flue, Steam Drum, Piping and Other Complete Equipment | 49.5 | 4 | 252 | 1 | 2021 | Benxi Beitai Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum, Piping and Other Complete Equipment | 86.4 | 4 | 252 | 2 | 2020 | Qingdao Special Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum, Piping and Other Complete Equipment | 64.8 | 2.45 | 225 | 2 | 2020 | Fushun Special Steel |
| 120t Converter Flue, Steam Drum and Other Complete Equipment | 59 | 2.45 | 225 | 2 | 2020 | Lingang Project of Laiwu Iron and Steel Yongfeng Iron Co., Ltd. |
| 120t Converter Flue, Steam Drum and Other Complete Equipment | 59 | 2.45 | 225 | 2 | 2020 | Shanxi Southern Jin Iron and Steel Group Co., Ltd. |
| 120t Converter Flue, Steam Drum and Other Complete Equipment | 58.5 | 2.45 | 225 | 2 | 2019 | Shandong Shiheng Special Steel Group Co., Ltd. |
| Complete Equipment Including Flue and Steam Drum for 150t Converter | 64.8 | 2.45 | 225 | 2 | 2019 | Lianfeng Iron and Steel Group |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 51 | 2.45 | 225 | 3 | 2002~2016 | Jinan Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum, Piping and Other Complete Equipment | 48 | 2.5 | 226 | 1 | 2019 | Panzhihua Iron and Steel Co., Ltd. |
| Flue, Steam Drum, Heat Accumulator and Others for 120t Converter | 51 | 2.45 | 225 | 3 | 2005~2019 | Laiwu Iron and Steel Yongfeng Iron Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 51 | 2.45 | 225 | 3 | 2003~2016 | Laiwu Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 51 | 2.45 | 225 | 3 | 2002~2016 | Nanjing Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 51 | 2.45 | 225 | 3 | 2002~2016 | Shaoguan Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 51 | 2.45 | 225 | 3 | 2010~2016 | Handan Iron and Steel Co., Ltd. |
| 120t Converter Flue and Steam Drum | 51 | 2.45 | 225 | 2 | 2002~2016 | Benxi Beiying Iron and Steel Co., Ltd. |
| 120t Converter Flue and Steam Drum | 51 | 2.45 | 225 | 4 | 2004~2016 | Hunan Valin Xiangtan Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 51 | 2.45 | 225 | 3 | 2008~2016 | Liuzhou Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 51 | 2.45 | 225 | 2 | 2008~2016 | Jiangxi Jiujiang Iron and Steel Co., Ltd |
| 120t Converter Flue | 140 | 2.45 | 225 | 4 | 2006~2015 | Xinjiang Bayi Iron and Steel Co., Ltd. |
| 120t Converter Flue and Steam Drum | 51 | 2.45 | 225 | 4 | 2015 | Rizhao Iron and Steel Co., Ltd. |
| 120t Converter Flue and Steam Drum | 51 | 2.45 | 225 | 1 | 2011 | Wuyang Iron and Steel Company |
| 120t Converter Flue and Steam Drum | 51 | 2.45 | 225 | 1 | 2011 | Lingyuan Iron and Steel Company |
| 120t Converter Flue and Steam Drum | 2.45 | 225 | 3 | 2008 | Jiangyin Xingcheng Special Steel Co., Ltd. | |
| 120t Converter Flue and Steam Drum | 51 | 2.45 | 225 | 2 | 2009 | Shaanxi Longmen Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 51 | 2.45 | 225 | 2 | 2003 | Weifang Iron and Steel Co., Ltd. |
| 120t Converter Flue and Steam Drum | 51 | 2.45 | 225 | 1 | 2004 | Anyang Yongxing Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 140 | 2.45 | 225 | 2 | 2004~2007 | Tonghua Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 140 | 2.45 | 225 | 3 | 2004 | Jiuquan Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 65 | 2.45 | 225 | 2 | 2007 | Shanxi Haixin International Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 140 | 2.45 | 225 | 2 | 2006 | Hebei Shengbao Steel Pipe Manufacturing Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 110 | 2.45 | 225 | 2 | 2006 | Hebei Tangyin Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 120 | 2.45 | 225 | 2 | 2006 | Tangshan Ruifeng Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 140 | 2.45 | 225 | 3 | 2007~2008 | Hebei Puyang Iron and Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 45 | 2.45 | 225 | 2 | 2007 | Hebei Jingye Iron and Steel Co., Ltd. |
| 120tAOD Converter Flue | 110 | 2.45 | 225 | 2 | 2007 | Tangshan Stainless Steel Co., Ltd. |
| 120t Converter Flue, Steam Drum and Heat Accumulator | 110 | 2.5 | 225 | 2 | 2007 | Ansteel-Linggang Iron and Steel Co., Ltd. |
