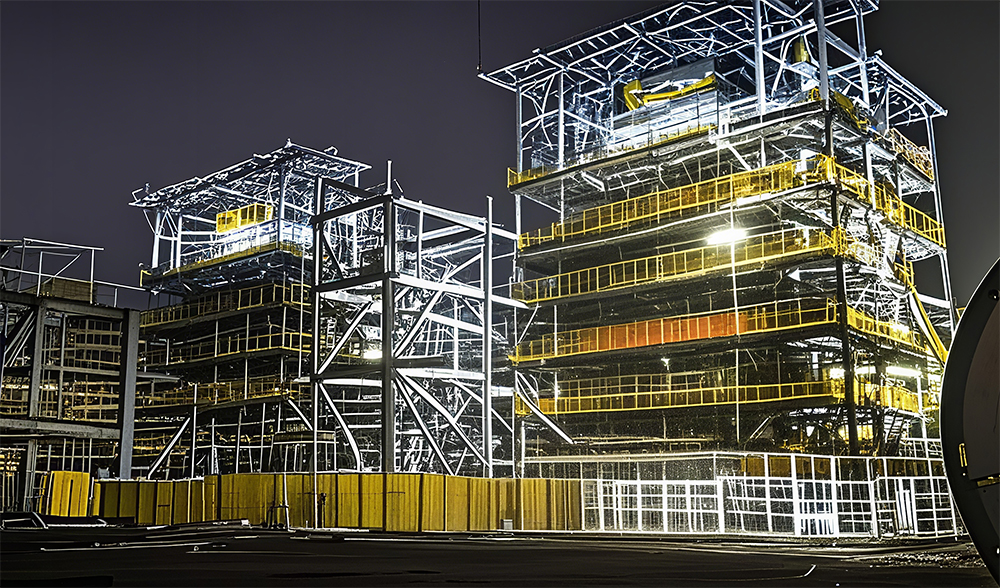

End User : Exxon Mobil，HCCP
Client : Sinopec, SEI

Package : PE1

Capacity : 180tons/hour

Steam Pressure : 12.5Mpa

Steam Temperature : 520℃

Boiler Type: Natural Circulation, Π-type Layout

Introducing Italian MACCHI Boiler Technology

Boiler capacity: Up to 600 t/h

Maximum steam pressure: Up to 14 MPa

Key Features:

MRD Model: Single-drum natural circulation, fully welded self-supporting structure. Compact design with small footprint, modular supply, and rapid load change capability.

TITAN M Model (similar to D-type): Double-drum natural circulation, offering higher cost efficiency.

Corner-Tube Boiler (Licensed ERK Technology from Germany)
Capacity Range: 10-280 t/h

Technical Features:
• Single-drum natural circulation
• Fully-welded self-supporting structure
• Modularized supply
• Rapid start-up capability
• High load variation rate

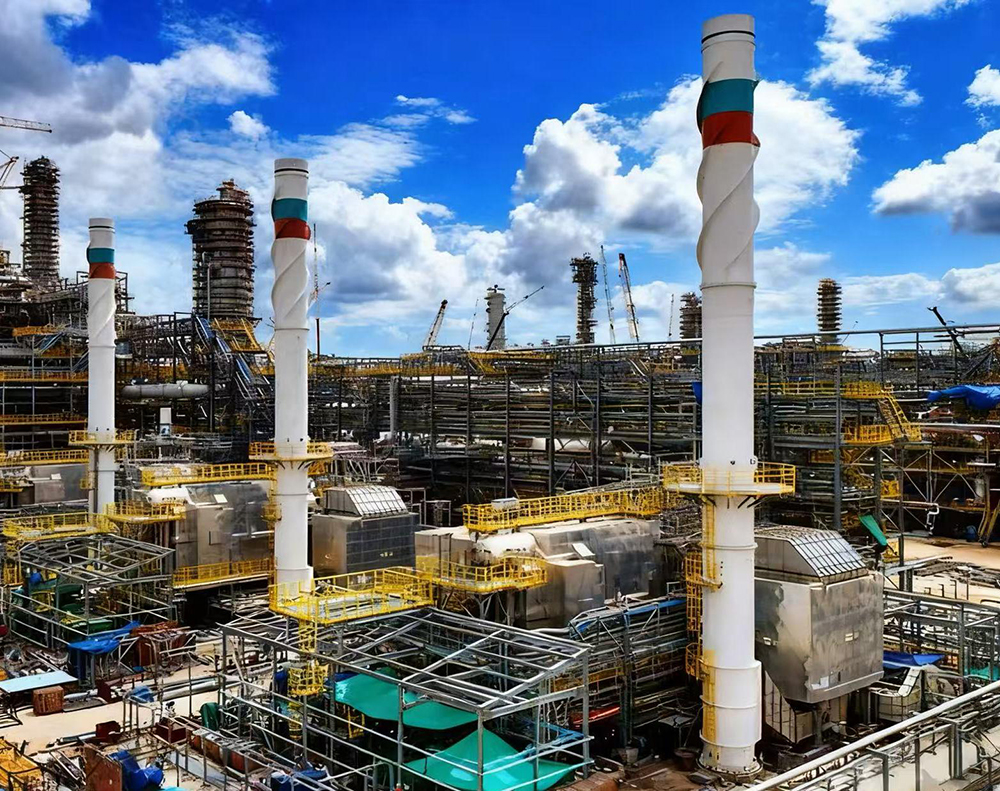

End User : Amur Gas Chemical Complex Limited Liability Company
Client : Sibur(AGCC)
Package : PE,Crack Unit
Capacity : 270tons/hour
Steam Pressure : 4.8Mpa
Steam Temperature : 405℃

Boiler Type: D-Type Boiler
Primary Fuel: Natural Gas
Auxiliary Fuel: Process Waste Gas
Backup Fuel: C9+ Liquid Fuel
Maximum Operating Conditions:

Feedwater Temperature: 115°C

Exhaust Gas Temperature: 150°C

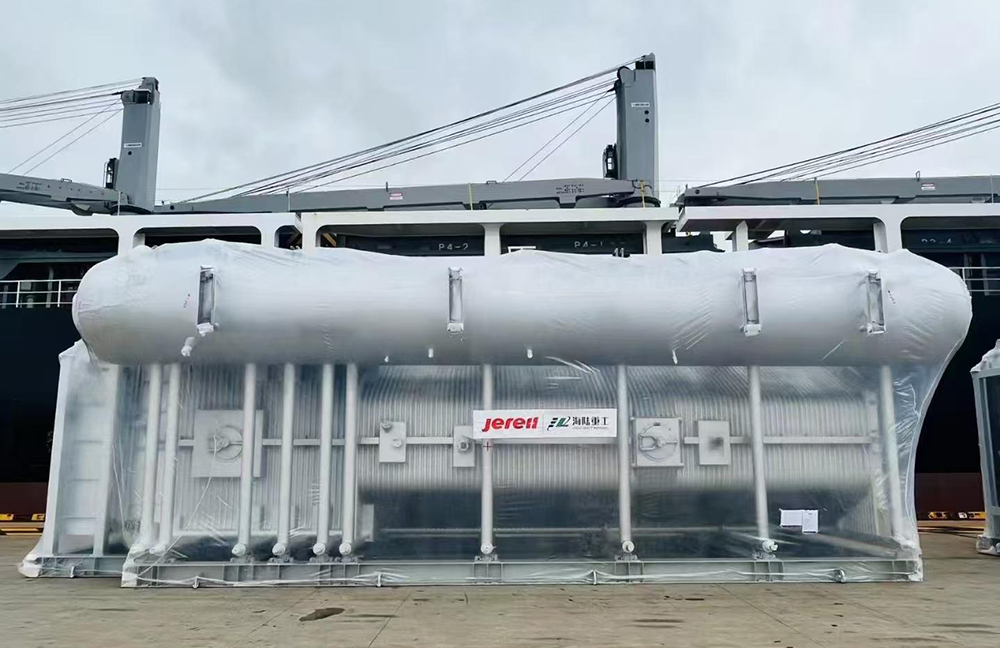

End User :KOC，Jurassic Production Facility 5 (JPF-5)
Client : Jereh Oil & Gas Engineering
Capacity : 35tons/hour

Steam Pressure : 1.0Mpa
Steam Temperature : 185℃
