What We Do

The dehydrogenation reactor for the 100,000 TPA Styrene Plant in 1998 was a key project under the "Ten Dragons" R&D Program of Sinopec. It was the first domestically produced unit to replace imported equipment and was manufactured by the company. The main materials of the reactor are 304H and Incoloy 800HT.

The company has manufactured over 20 dehydrogenation reactors for styrene projects, including those for Hainan Jiahua, Sinopec Baling, CNOOC Ningbo Daxie, Lihuayi Lijin Refining, Sinopec Luoyang, and PetroChina Jilin Petrochemical.

Cooperation Cases

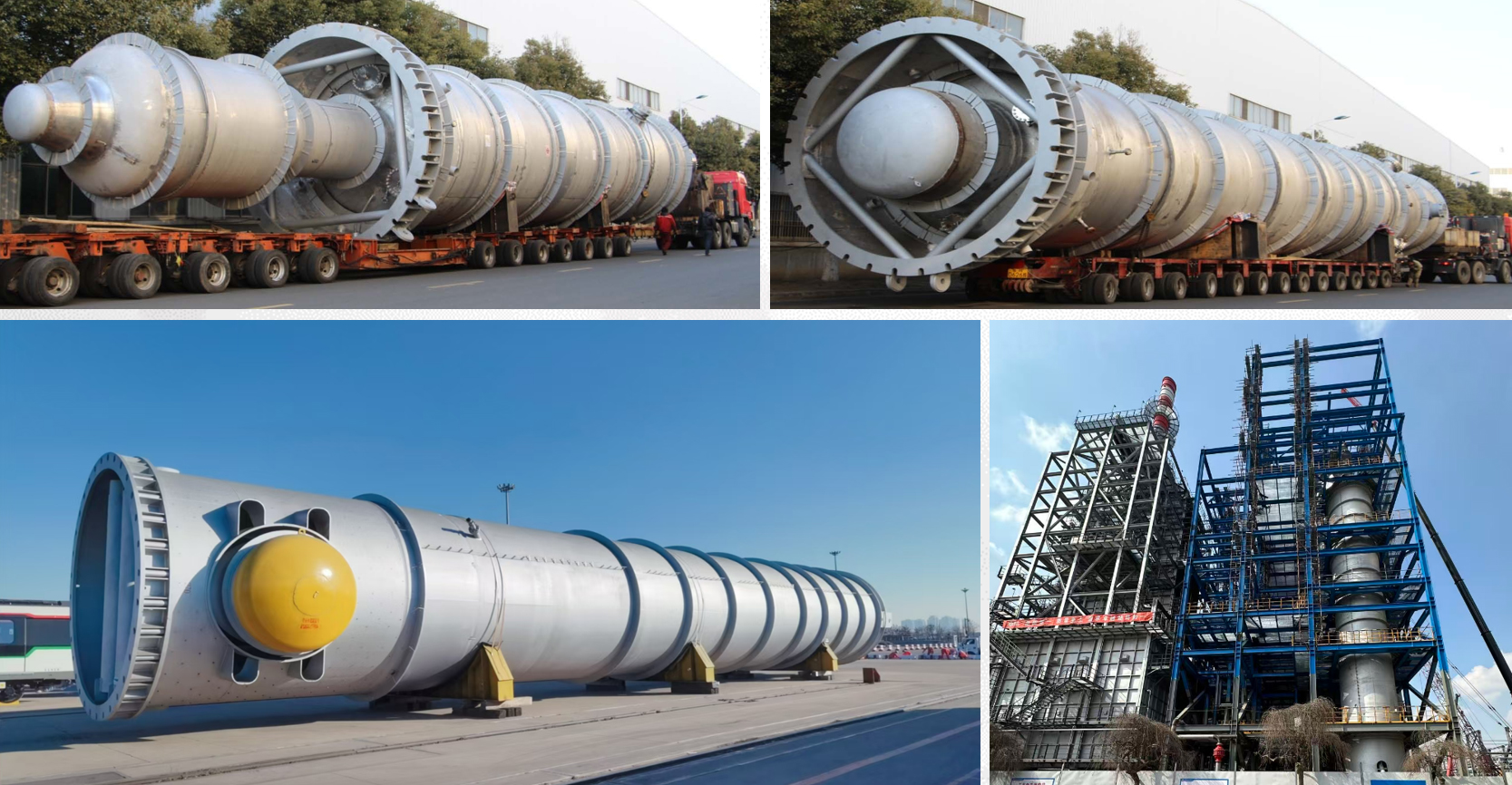

600,000 TPA Styrene Plant of Jilin Petrochemical Company (China)
600,000 TPA Styrene Plant of Jilin Petrochemical Company (China)

Size: DN5100×82mm/78mm/50mm/35mm

Height: 34300mm

Material: 304H

Weight: 500 ton

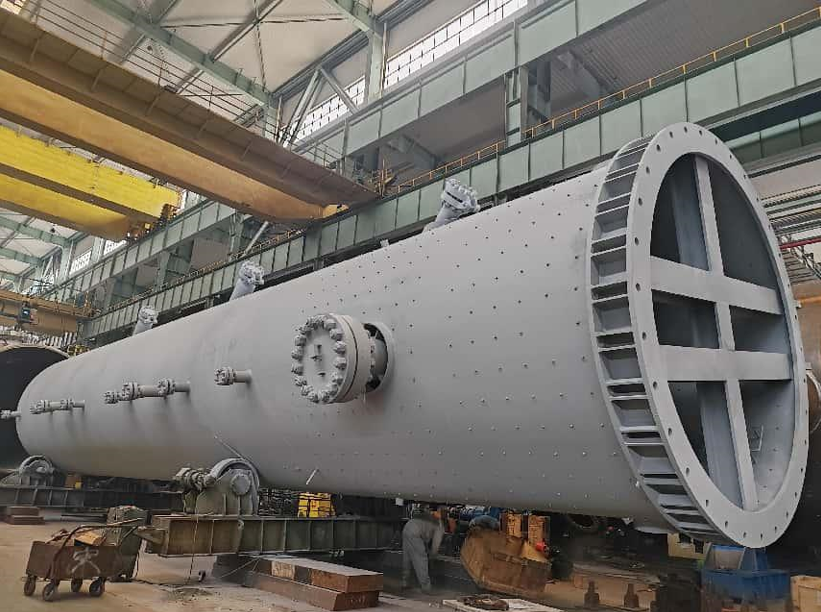

Catalytic Dewaxing Reactor(Vanadium steel)
Catalytic Dewaxing Reactor(Vanadium steel)

Catalytic Dewaxing Reactor (Vanadium Steel) for the diesel hydrotreating unit revamp with an integrated dewaxing section under the Project. Designed and manufactured in accordance with ASME BPVC Section VIII Division 2, its main material is SA-542 Gr.D Cl.4a + overlay SS347, with a thickness of 118 + 6 mm and weight of 253 tons. Vanadium steel is a special material presenting the greatest manufacturing challenges, particularly in welding. Stringent requirements apply to preheating, post-heating, welding temperature and PWHT. We completed the manufacturing within 8 months, while the standard lead time is at least 12 months.

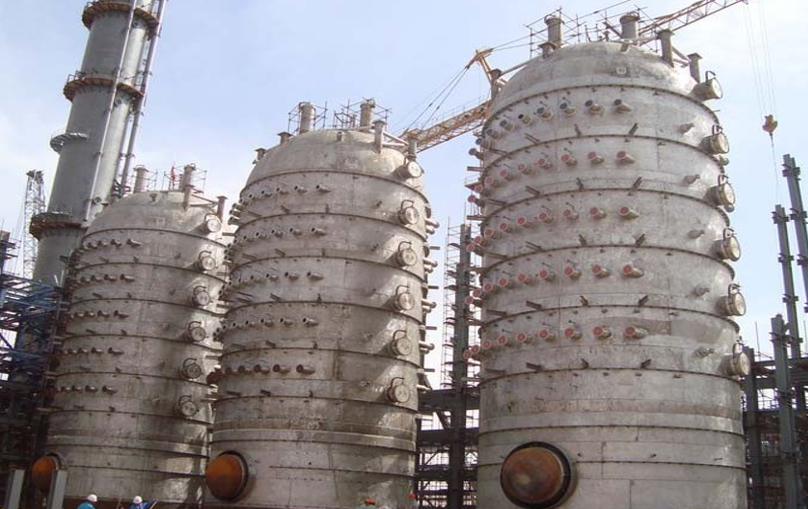

Shenhua (Ningmei) Coal-to-Propylene (MTP) Reactor
Shenhua (Ningmei) Coal-to-Propylene (MTP) Reactor

Design Pressure: 0.3 MPa

Design Temperature: 530 / -19.9 °C

Main Material: 0Cr18Ni10Ti (Stainless Steel 321)

Diameter: 11.7 m

Weight: 720 t

Height: 21 m

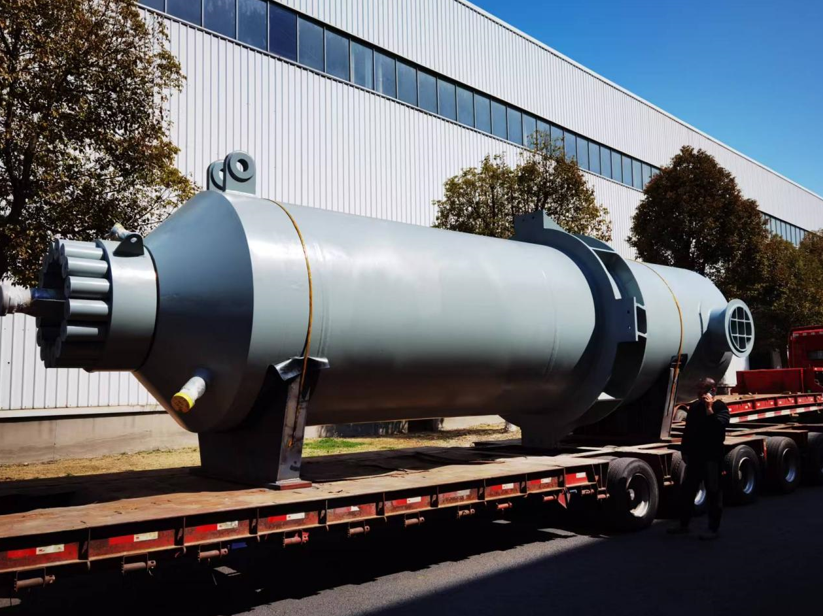

BDO reactor
BDO reactor

These reactors are the core equipment for BDO plants. The main material is 20MnMoⅣ forging + overlay S30403, with a thickness of 190 + 6 mm and a design pressure of 34.8 MPa. We have manufactured more than 30 sets of such reactors for customers in Xinjiang, Inner Mongolia, Sichuan and other regions.

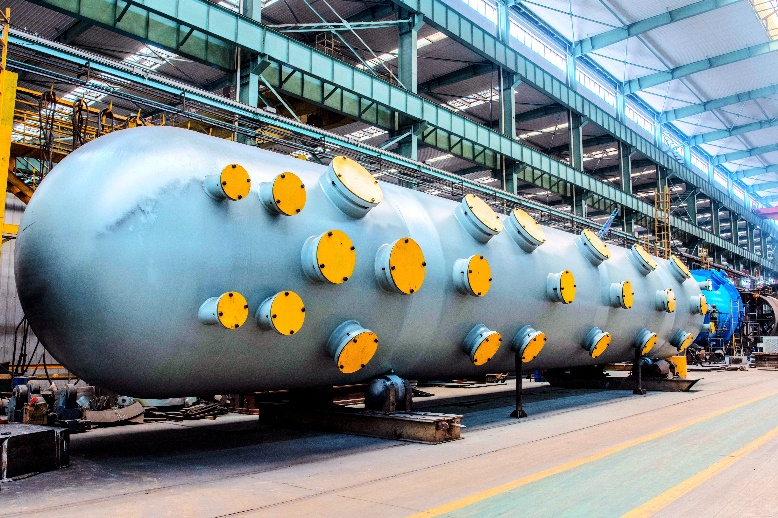

Zhejiang Yongxu Mining Group - 50,000 TPA Electrolytic Nickel Project
Zhejiang Yongxu Mining Group - 50,000 TPA Electrolytic Nickel Project

Design Pressure: 2.39 MPa
Design Temperature: 210 °C
Volume: 178 m³
Main Material: Q345R + TA2 Explosive Clad Plate

Description: The pressure reactor is a core equipment in the hydrometallurgical process for producing battery-grade nickel sulfate. Its internal cavity is divided into four separate compartments, each equipped with an agitator. These agitators are mounted in parallel on the shell.


Reactor Performance Table
Main materialEquipment name Specification(mm)Weight（KG）Manufacture yearName of customer or project
No. 1 Carbonylation Reactor  Q345R+S30403DN5500*54+3*139501482025Guangxi Huayi New Materials Co., Ltd. 320000 tons/year butyl octanol and acrylic ester project butyl octanol unit
No. 2 Carbonylation ReactorQ345R+S30403DN5500*54+3*139501692025
Butanol Liquid Phase Hydrogenation Reactor  Q345RDN3500*56*148251102025
Condensation reactor Q345RDN1900*18*83009.82025
Octanol liquid phase hydrogenation converter  Q345RDN3100*50*17575952025
Octanol refining reactorQ345RDN850*18*3368018.52025
Cracking gas dryerQ345R(N)Φ5600*56*52*187001502025.2Global North Division (Zhongsha Gulei)
Liquid hydrocarbon dryerQ345R(N)Φ3000*50*44*16200632025.2
Hydrogen dryerQ345R(N)Φ2400*36*30*15300382025.2
Acrylic product protection bedQ345R(N)Φ2200*30*26*14500262025.2
Carbon dioxide hydrogenation dryerQ345R(N)Φ6500*60*145501582025.2
Carbon dioxide hydrogenation reactorQ345R(N)Φ4900*68*150501122025.2
Carbon Three Hydrogenation ReactorS32168Φ3600*52*239001022025.2
Methanation reactor14Cr1MoRΦ2200*34*13500302025.2
Butene isomerization feed processorQ345R(N)Φ3600*30/26*19900592025.2
Isomerization reactorS30409Φ2600*30*10650252025.2
C4 hydrogenation reactor15CrMoRΦ3900*50*210001132025.2
reactorQ345R(正火)Ø7730/5000*132/126/122/82*432495600002025Wuhuan Design&Research Institute (middling coal Yulin Coal Deep Processing Base Project)
Product purification chamberQ345R(正火)Ø8200/6100/4200*32/30/28/20*455752550002025
First reactorQ345RØ4500*36*170001100002025CNOOC Jilin Institute (Middling Coal Yulin Deep-Processing Coal Base Project)
Second reactorQ345RØ4500*36*163201100002025
Third reactorQ345RØ4500*36*163201100002025
Oxidation reactorQ345R+S30403DN7500*33920*20+31770002024Guangxi Huayi New Materials Co., Ltd
First reactorQ345R+S32168DN4000*26+5*19900703002024Sinopec Anqing Petrochemical MTBE Project
Second reactorQ345R+S32168DN4000*26+5*19900703002024
Third reactorQ345R+S32168DN4000*26+5*19900703002024
Selective hydrogenation reactorQ345RDN1800*26*21736273002024
reactorQ345R+S30403DN7600*34120*3+242020002024Penglai Wanhua POCHP Capacity Expansion
Ethane removal towerS30408/S31603DN4900/2700*50660*34/58mm2300002024Tobacco Unit Wanhua Phase I Ethylene Technical Renovation
Exhaust pipeQ345R/S30403DN1900*74000*10mm350002024Fujian Wanhua Nitric Acid Plant
TDA reactorQ345RDN3900*40*10420550002024Fujian Wanhua Phase II TDI Plant
2 # Alkyl Transfer ReactorQ345RDN1300*12584.5*24110502024Guangxi Huayi New Material Co., Ltd., 200KTA BPA project phenol acetone unit
Catalytic dewaxing reactorSA-542 Gr.D CL.4aØ3594*116+5/68+5*2435002024Kazakhstan Pavlodar Oil Chemical RefineryDiesel hydrogenation unit
Overlay SS34724315
First reactor304HØ4600*35/25/22/19/16*343002380002023China National Petroleum Corporation Limited Jilin Petrochemical Company, Ethylene Unit
Second reactor304HØ5100*60/52/45/38/30/22/18*328003900002023
Hydrogenation reactor13MnNiMoR6400×9010×1151650002024Lianyungang Hongke New Material Co., Ltd. BDO Unit
Hydrofeed carburetorQ345R(normalizing)/Q345R(normalizing)+overlay4200×11975×(120+4)2300002024
Disproportionation reactor14Cr1MoR（H)DN2700*50*12000430002024Shengteng Technology Co., Ltd. Disproportionation renovation project
fluidized bedQ345R，20DN3200×24192 x16/201148102023Shandong Winsun Chemical Co.
fluidized bedQ345R，20DN2600/3300×18412 x14/16/20855702023
Glycol ReactorS30408DN1100×160000 x221100002023Shandong Yulong Petrochemical 10_1 million tons/year EO/EG plant
reactor
Head: Q345R+S31603DN1500*7592*219102023Workshop 2028, Vitamin Plant, Changhai Biological Branch, Zhejiang Pharmaceutical Co.
Cylinder: 20MnMoⅣoverlay S316036+60/6+75
Selective Hydrogenation ReactorQ345RDN2500*32*11131250002023Sinopec Guangzhou Engineering-Sinopec Zhenhai Refining Phase II Residue Hydrotreating Propane Dehydrogenation Project
oxidation reactorQ345R+S30403DN10000*39950*4131002023Sinopec Shanghai Engineering-Sinopec Zhenhai Refining 300kt/a CHPPO Project
32+3/34+3
Primary Hydrolysis ReactorQ345R+S31603DN4400*24754.5*48+31417502023
Secondary Hydrolysis ReactorQ345R+S31603DN3600*23304.5*40+3901502023
Primary epoxidation reactor09MnNiDRDN2800*9260.7*114658402023
Secondary epoxidation reactorSA-516 Gr60DN3400*14030.7*1441540502023
 Primary reactorS31603+Q345RDN6600*14450*（3+54）1550002023Sinopec Shanghai Engineering - Sinopec Zhenhai Refining 240,000 tons/year Bisphenol A Project
Backup reactorS31603+Q345RDN6600*14450*（3+54）1550002023
Secondary reactorS31603+Q345RDN6600*14450*（3+54）1550002023
Recycling ReactorS31603+Q345RDN6600*14450*（3+54）1550002023
First/second hydrogenation reactorQ345R(normalized)Ø3185*48*9600420002022Hongwei Chemical 45-60 million tons/year POSM
Pre-polymerization reactorS30403+Q345RØ4280*(28+3)*12000510002022
Polyether polyol reactorS30403+Q345RØ5300*(36+3)*14600970002022
1#/2# Polymer Polyol ReactorS30403+Q345RØ1100*10*381038002022
Dispersant Polyol ReactorS30403+Q345RØ2160*26+3*5000150002022
Carbonylation reactorQ345R(normalized)Ø2600*54*360001720002022
Vinyl Feed ProcessorQ345R(normalized)Ø2200*30*15880300002022
Alkyl Transfer ReactorQ345RØ2000*28*20100350002022
Fresh Benzene White Soil Protected BedQ345R(normalized)Ø3300*36*11900385002022
Fresh Benzene NiGuard Protection BedQ345RØ1300*20*1090085002022
Primary (BYD) Hydrogenation Reactor20MnMoⅣOverlay S30403DN1850（I.D）×10104×（195+6.5）1080002022Sichuan Yongying new materials annual output of 800,000 tons of functional new materials integration industry chain project phase I project
BDO Hydrogenation Reactor20MnMoⅣOverlay S30403DN2000（I.D）×10357×（212+6）1365002022
Formaldehyde reactorS30408/S30403DN5385*9250*16/22805002022Inner Mongolia Junzheng Chemical Co., Ltd
BDO primary reactorS30403+20MnMoⅣDN1750*190+6*106031052002022Wuhai Guangjin New Material Co.
BDO-PBAT Integration Project (Phase I)
BDO secondary reactorS30403+20MnMoⅣDN1750*190+6*106031052002022
recirculating gas separator 16MnⅣDN500*190*344175002022
Methanation reactor15CrMoRDN2300*40*8600360002022Shandong Yulong Petrochemical 1#2#1.5 million tons/year ethylene plant
hydrogenation reactor15CrMoRDN1200*7723*2678002022Donghua Engineering Science and Technology Co., Ltd-Synthesis Gas Plant Phase III Expansion Project of Shanghai Chemical Industry Gas Co.
Desulfurization reactor15CrMoRDN1400*9782*30122002022
Pre-conversion furnace15CrMoRDN1900*7786*64211002022
oxidation reactorS30403+Q345RDN7000*33850*（3+24）1807002022Siding Engineering Co., Ltd - 350,000 tons/year phenol acetone project of polycarbonate joint project of Long Jiang Chemical Co.
Primary reactorS31603+Q345RDN6600*13535*（3+55）1480002022Huizhou Zhongxin Industry Co., Ltd. 240,000 tons/year bisphenol A
Backup reactorS31603+Q345RDN6600*13535*（3+55）1480002022
Secondary reactorS31603+Q345RDN6600*13535*（3+55）1480002022
Recycling ReactorS31603+Q345RDN6600*13535*（3+55）1480002022
Primary crystallizer AS30403DN6600*25725*24/221380002022
Primary crystallizer BS30403DN6600*25725*24/221380002022
Secondary crystallizer AS30403DN6600*25725*24/221380002022
Secondary crystallizer BS30403DN6600*25725*24/221380002022
BDO primary reactorS30403+20MnMoⅣDN1750*190+6*106031052002022300,000 tons/year BDO project of Xinjiang Zhongtai Jinhui Technology Co.
BDO secondary reactorS30403+20MnMoⅣDN1750*190+6*106031052002022
recirculating gas separator 16MnⅣDN500*190*344175002022
Carbonylation reactor14Cr1MoR/S22053φ5800×118/98×198866880002022Beijing Petrochemical-Anhui Carbon Xin Technology Methanol Comprehensive Utilization Project
Gathering the first kettleS30408φ3200×14×4900153002022Zhejiang Transfar Synthetic Materials Co.
Coalescing Medium KettleS30408φ3800×16×8200223002022
Coagulation kettleS30408φ3800×16×8200222002022
SDR-S reactorS31603φ2100×16×560041002022Ltd. - Flue Gas Compressor for Research and Demonstration Project of CO2 Capture and Utilization Technology in Thermal Power Plant
YMR ReactorS31603φ1600×14×920075002022
YMR-S ReactorQ345Rφ2250×18×18365202002022
One-stage hydrotreaters15CrMoR(H)DN2400*32*11514209062021Chengda Engineering-Wanhua Chemical (Sichuan) Co., Ltd. 200,000 tons/year methanol plant for natural gas to acetylene industry chain and park supporting public and auxiliary engineering project
Two-stage hydrotreaters15CrMoR(H)DN2400*32*11514209552021
cryogenic converter15CrMoR(H)DN2400*30*11514198052021
desulfurization tankQ345R(N)DN3000*32*13315325202021
Medium Temperature Conversion Furnace14Cr1MoR(H)DN2400*36*17403411122021
BDO primary reactorS30403+20MnMoⅣDN1750*190+6*106031052002021Phase IV 100,000 tons/year BDO project of Xinjiang Markor Chemical Co.
BDO secondary reactorS30403+20MnMoⅣDN1750*190+6*106031052002021
recirculating gas separator16MnⅣDN500*190*344175002021
1-stage reactor, back-up reactor, 2-stage reactor, recovery reactorQ345R+S31603DN6600*58+4*134501574502022Bisphenol A Project of Jiangsu Ruiheng New Material Technology Co.
Protective bedsQ345R+S31603DN6600*58+4*103501125002022
1-section crystallizer AB/2-section crystallizer ABQ345R+S30408DN6600*18+3*263431306002022
Hydrogenator SA387Gr.11 Cl.2Ф4300*9857.6*961240002021Chengda Engineering-Russia NFP 5400 MTPD Methanol Project
Sulfur absorberSA387Gr.11 Cl.2Ф4900*12443*1063600002021
Mercury absorberSA516Gr.70(N)Ф3200*8180*76390002021
PrereformerSA387Gr.22 Cl.2Ф3700*10124*1521400002021
Product polisher unitSA516Gr.70(N)Ф4100*11920*32383002021
reactorS31603+Q345RФ6200*12985*3+551238002021Sedin Engineering-Guangxi Huayi New Material Co., Ltd. 200,000 tons/year bisphenol A plant
reactorS30403+Q345RCarbonyl Synthesis Reactor No. 11150002021Hualu Engineering-Guangxi Huayi New Materials Co., Ltd. 750,000 tons/year propylene and downstream deep processing project butanol plant
Ф5200*13450*3+46137000
Q345RCarbonyl Synthesis Reactor No. 1144000
Ф5200*13320*3+46
Liquid phase hydrogenation reactor
Ф4000*17650*64
Dehydrogenation reactor304H+N08811Ф3200*25000*281810002020China Petroleum & Chemical Corporation Luoyang Branch
Ф3100*20000*28
Isopropyl alcohol reactorQ345RDN4300*26/28*163683800002020Lihuayi Wei Yuan Chemical 100,000 tons/year isopropanol plant
First dehydrogenation reactor304HФ5000×18/25/322450002019Shandong Lihuayi Refining and Chemical Co., Ltd.
×44070
Second dehydrogenation reactor304HФ5450×19/28/36/45/52/59/67×341563450002019
Sulfur CondenserQ345R/06Cr13,Q245R，Q345R/20Sulfur condenserDN2600*22*14800,25900002020Sulfur Recovery Joint Unit of Zhejiang Petrochemical Co.
Krauss ReactorDN2400*22*13900
tail gas reactorKrause reactor DN4300*28*15778
Steam superheaterTail gas reactor DN4300*24*15778
Incinerator steam generatorSteam superheaterDN4600*5070
Main Steam GeneratorSteam generator for incinerator DN2800*8470,
DN1200*6100
Main steam generator DN3400*9385,
DN1600*7100
Gasoline Hydrogenation Stage Reactor15CrMoR(H) Φ2000×20000～25000×34  440002020Sheng Hong Refining & Chemical (Lianyungang) Co., Ltd. integration project 1.1 million tons/year ethylene cracking unit
Design pressure 4.2MPa Design temperature 495°C
Gasoline hydrogenation two-stage reactorS32168Φ2000×18000～19000×54  710002020
Phenylacetylene Hydrogenation Reactor15CrMoRΦ1600×17000～18000×14  150002020
Design pressure 0.5MPa Design temperature 475°C
Carbon dihydrogenation reactorQ345RΦ4500×16000～17000×104 1700002020
Carbon III Hydrogenated Arsenic Removal  ReactorQ345RΦ3200×15000～16000×40 575002020
Methanation reactor14Cr1MoR(H)Φ2400×12000～13000×50 460002020
Design pressure 4.5MPa Design temperature 445°C
Carbon III Hydrogenation ReactorS32168Φ1700×11000～12000×26130002020
ROG Gas Phase Arsenic Removal ReactorQ345RΦ2400×11000～12000×34255002020
ROG Liquid Phase Arsenic Removal ReactorQ345RΦ2500×13000～14000×38348002020
Cracked gas dryerQ345RΦ5800×9500×501480002020
Liquid dryerQ345RΦ2000×10250×24250002020
Hydrogen dryerQ345RΦ2300×11950×34460002020
ROG DryerQ345RΦ3400×10350×44700002020
Cracked gas second dryerQ345RΦ5800×9300×862450002020
First Klaus ReactorQ345R/06Cr13Ф4300*28*15778790002018Zhejiang Petrochemical Company Limited 20 million tons refining and chemical project (Phase I)
Klaus II reactorQ345R/06Cr13Ф4300*28*15778790002018
tail gas reactorQ345RФ4300*24*15778660002018
Krause I and II reactorsQ345R/06Cr13Ф3200*16*11712285002018
First Klaus ReactorQ345R/06Cr13DN4300*28*15778643502019
Klaus II reactorQ345R/06Cr13DN4300*28*15778633002019
tail gas reactorQ245RDN4300*24*15778630802019
Hydrogenation reactor head1/2.25Cr1Mo0.25VSR2513*190mm160002010Hydrogenation reactor of China Erzhong Co.
reactorQ345RФ9151/5600*43115*544550002018450,000 tons LLDPE plant of Wanhua Chemical Co.
First Klaus ReactorQ345R/06Cr13Ф4300*28*15778790002018Zhejiang Petrochemical Company Limited 20 million tons refining project
Klaus II reactorQ345R/06Cr13Ф4300*28*15778790002018
ail gas reactorQ345R/06Cr13Ф4300*24*15778660002018
Krause I and II reactorsQ345R/06Cr13Ф3200*16*11712285002018
Formaldehyde reactorS30408、00Cr19Ni10Ф4932×16×8950667502018Xinjiang Lanshan Tunhe Chemical 100,000 tons per year 1,4 Butanediol Project
DMO reactorS30408Ф4200*10701*181350002018Ethylene Glycol Project of Xinjiang Tianye Huihe New Material Co.
DMO reactorS30408Ф4100*10200*181150002016Shandong Lihua Yi Lijin Refining & Chemical Co.
reactorSA-387M Gr11 CL.2+304LDN1380×（3+18）×1008080002016Hualu Engineering/Pakistan National Oil Refining Company
reactorSA-516M Gr.485DN1830×32×18335260002016
Methane Conversion ReactorSA-516M Gr.485DN610×12×705130002016
First dehydrogenation reactor304HФ4200×42×291781700002013CNOOC Ningbo Daxie 280,000 tons / year styrene
Second dehydrogenation reactor304HФ4300×42×304852800002013
DMO reactorS30408/OCr18Ni9Ф3500×20×7350320002013Xinjiang Tianye Group 200,000-ton annual output of BDO and 250,000-ton annual output of ethylene glycol project
Formaldehyde reactorS30408、00Cr19Ni10Ф4932×16×8950667502013Xinjiang Meike Chemical 100,000 tons per year 1,4 Butanediol Project
First dehydrogenation reactor304HΦ3100×17260750002010Sinopec Baling Petrochemical Company
Second dehydrogenation reactor304HΦ3200/φ2700×196401190102010
Fischer-Tropsch Synthesis ReactorSA387Gr11CL2Ф9860×130×6100032670002012Shanxi Lu'an High-Sulfur Coal Clean Utilization Project
DME Reactor15CrMoRФ5250×44×183601200002012Shenhua Ningxia Coal
DME Reactor15CrMoRФ5000×44×178601127002012Ning Coal Methanol to Olefin Project
Methanol synthesis reactor14Cr1MoRφ3000×92×145001168202007200,000 tons/year methanol project of Hulunbeier Dongneng Chemical Co.
Desulfurization reactor14Cr1MoR+ 00Cr17Ni4Mo2φ3200×130+4×10180950002011Guodian Yinglit Coal-based Multi-Generation Project
reduction reactor15CrMoRФ4000×74×365103000002013Shanxi Lu'an Group High-Sulfur Coal Clean Utilization Project
MTP Reactor0Cr18Ni10TiL=33000 φ=11700δ=287300002008Shenhua Ning Coal Propylene Project Site Production
DMO reactorS30408/OCr18Ni9Ф4133×14×9472440002011Xinjiang Tianye calcium carbide furnace gas to ethylene glycol phase I project
DMO reactorS30408/OCr18Ni9Ф3500×20×7350320002013Xinjiang Tianye Group 200,000-ton annual output of BDO and 250,000-ton annual output of ethylene glycol project
Formaldehyde reactorS30408、00Cr19Ni10Ф4932×16×8950667502013Xinjiang Meike Chemical 100,000 tons per year 1,4 Butanediol project
Formaldehyde reactorS30408、00Cr19Ni10Ф4600×16×10155520002013Xinjiang Lanshan Tunhe 160,000 tons/year biodegradable engineering plastics integration project
Formaldehyde reactorS30408Ф4600×16×10158490002013Inner Mongolia Dongyuan Technology 100kt/a 1,4-Butanediol Project
Formaldehyde reactorS30408Ф4133×14×9472440002011Guodian Ningxia Yinglit 200kt/a 1,4-Butanediol Project
View More
Stock Code
002255
