Our company manufactures over 100 towers annually, utilizing materials including stainless steel, duplex steel, clad steel, low-temperature steel, chrome-molybdenum steel and special alloys. The heaviest tower we have produced weighs over 2,600 tons with a diameter of 11 meters. In March 2025, we completed the fabrication of a wash tower for the EPC project of the 1.5 million tons per year ethylene and downstream deep processing complex, which is part of the ethylene oxide and ethylene glycol unit. This equipment, weighing 2,650 tons, standing 110 meters tall and with a diameter of 10.2 meters, is constructed from Q345R+S30403 clad steel and is the world's largest tower of its kind for such a facility to date.
Our company is equipped with an out-of-gauge equipment workshop located near the Zhangjiagang Gangxin Port. This enables us to manufacture equipment with large diameters and heights that cannot be transported via road. The workshop houses the largest heat treatment furnace in South China, measuring 31m in length, 13m in width and 13m in height, capable of meeting the heat treatment requirements for out-of-gauge equipment.
| Tower Performance Table | |||||
| Main material | Equipment name | Specification(mm) | Weight(KG) | Manufacture year | Name of customer or project |
| stabilization tower | S30403 | DN1500x14*15000 | 12.5 | 2025 | Guangxi Huayi New Materials Co., Ltd. 320000 tons/year butyl octanol and acrylic ester project butyl octanol unit |
| Isomer Tower | S30403+Q345R | DN4600x26+3*74150 | 293 | 2025 | |
| Extraction tower | S30403+Q345R | DN1200x14+3*11950 | 12.5 | 2025 | |
| Butanol pre distillation tower | Q345R | DN1700x14*37550 | 33.5 | 2025 | |
| Butanol distillation tower | Q345R/S3043+Q345R | DN2300x3+14/14*35150 | 38.5 | 2025 | |
| Butanol hydrogen stripping tower | S30403 | DN400x12*6821 | 1.8 | 2025 | |
| Condensation cycle tower | Q345R | DN1500/2900*16/14*28330 | 26.5 | 2025 | |
| Octanol pre distillation tower | Q345R | DN3600x16*33050 | 60 | 2025 | |
| Octanol distillation tower | Q345R | DN2000x16*34500 | 38 | 2025 | |
| Water vapor tower | Q345R | DN850x12*14111 | 4.9 | 2025 | |
| Butyraldehyde recovery stripping tower | Q345R | DN500x10*5921 | 1.35 | 2025 | |

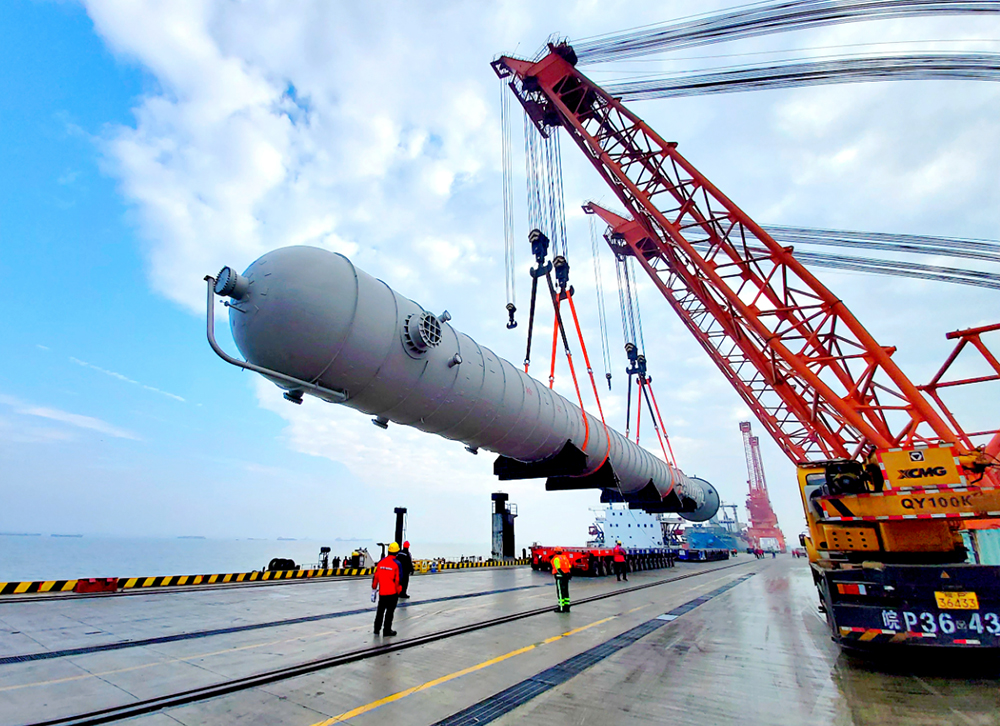

| Ethylene Distillation Tower | Q345R | φ4200*36/φ1500*16/φ600*12*68840 | 185 | 2025.1 | Global North Division (Zhongsha Gulei) |
| C4 Distillation Tower | Q345R | φ2400*14/φ2000*14/φ219*10*37015 | 45.9 | 2025.1 | |
| C6 Distillation Tower | Q345R | φ2550/φ2800*18/16*45440(skirt supportφ4820) | 72.5 | 2025.1 | |
| Hexene-1 Distillation Tower | Q345R | φ1500*36/32/28/24/20/16*68095(skirt supportφ3256) | 88 | 2025.1 | |
| Heptane Distillation Tower | Q345R | φ3200*20/18/16*46595(skirt supportφ4730) | 89 | 2025.1 | |
| C8 Distillation Tower | Q345R | φ1200*28/φ800*28/24/20/16/12*55665 | 41 | 2025.1 | |
| Xylene Distillation Tower | Q345R | φ1200*14/φ900*14/12*34670 | 19 | 2025.1 | |
| quenching tower | Q345R | φ10500x21500 | 600000 | 2025 | Sinopec Guangzhou Institute (middling coal Yulin Coal Deep Processing Base Project) |
| Water washing tower | Q345R | φ7200/φ10500x31500 | 600000 | 2025 | |
| 1 # Propylene Distillation Tower | Q345R | Ø6300*46*69000 | 578000 | 2025 | |
| 2 # Propylene Distillation Tower | Q345R | Ø7600*56*114000 | 1330000 | 2025 | |
| Propylene tower I | Q345R | Ø 8400x72800(T.T.)×66 | 1321.9 | 2025 | China Petroleum&Chemical Corporation Guangzhou Branch 2.4 million tons/year catalytic cracking (RTC) unit 1.3 million tons/year gas separation unit |
| Acrylic Tower II | Q345R | Ø8400Ø75600(T.T.)×66 | 1361.9 | 2025 | |
| Fractionation tower | S11306+Q345R | Ø9000x50900(T.T.)*3+30/40/60 | 645 | 2025 | 2.4 million tons/year catalytic cracking (RTC) unit of China Petroleum&Chemical Corporation Guangzhou Branch |
| stabilization tower | Q345R | Ø6400/7600x59040(T.T.)*3+34/42/56 | 680 | 2025 | |
| Wash tower | S30403+Q345R | Ø10200/9000*84+3/96+3*109000 | 2600 | 2024 | Sinopec Shanghai Engineering Co., Ltd. - Zhongsha Gulei EOEG Project |
| C3 stripping tower | Q345R | Ø7000x33200×54 | 515 | 2024 | CNOOC Shell Huizhou Phase III Ethylene Project 1.6 million tons/year Ethylene Plant |
| Propylene Distillation Tower | Q345R | Ø9000x89710×70 | 1923 | 2024 | |
| Depropanizer tower | Q345R | DN9300/6600×64750×114/82/58/56/32 | 1334 | 2024 | China Petroleum&Chemical Corporation Maoming Branch 3 million tons/year catalytic cracking (RTC) combined unit |
| Propylene tower I | Q345R | DN8800×90850×70/38 | 1710 | 2024 | |
| Acrylic Tower II | Q345R | DN8800×91850×70/38 | 1720 | 2024 | |
| 14C2140 tower | S30408/S31603 | D1400*32962*16 | 30000 | 2024 | Penglai Wanhua BON device |
| 14C2171 Tower | S30408/S31603 | D500/1600*18835*10/12 | 10500 | 2024 | |
| Water washing tower | 13MnNiMoR+S31603 | DN4000*72+3*21829 | 159000 | 2024 | Jiangsu Huachang Chemical Co., Ltd. Water Washing Tower Renovation |
| Vacuum Dryer | SA-516 Gr.60N(HIC) | DN2500/3500×35190×16 | 60800 | 2024 | Kazakhstan-Pavlodar Oil Chemical Refinery |
| Light component tower | Q345R | DN2200×21250×14 | 21000 | 2024 | Lianyungang Hongke New Material Co., Ltd. BDO Unit |
| Light component tower | S31603 | DN2200×22410×14/12 | 22500 | 2024 | Lianyungang Hongke New Material Co., Ltd. Maleic anhydride Unit |
| Product tower | S31603 | DN2050/3800×35000×24/16 | 75490 | 2024 | |
| 2# Propylene tower | S30403 | DN3200*22/16*17115 | 41080 | 2024 | Jiangsu Hoggang Petrochemical Co., Ltd. PTA Unit Phase 3 |
| Dewatering tower | S32205 | DN6750/3300/2200*26/16/12*42710 | 122200 | 2024 | |
| Drain scrubber | S31603 | DN3600*16*16360 | 39700 | 2024 | |
| Absorption tower | Q345R | DN3700*11650*46 | 56700 | 2024 | Shenghong Refining and Chemical (Lianyungang) Co., Ltd. |
| Absorber | Q345R | DN3500*14530*50 | 59885 | 2024 | Sinopec Ningbo Zhenhai Refining and Chemical Co., Ltd, |
| Absorption tower | Q345R | DN8000x16100 x54/66/114 | 440000 | 2023 | Shandong Yulong Petrochemical 1#2#1.5 million tons/year aromatics joint plant |
| Xylene tower | Q345R | DN6400/7300x82100x | 650000 | 2023 | Shandong Yulong Petrochemical 2#1.5 million tons/year aromatics joint plant |
| 48/32/28 | |||||
| A8 Stripper Tower | Q345R | DN6300/7200x70600x | 520000 | 2023 | |
| 26/30 | |||||
| Extractor Tower No. 2 | Q345R | DN6600x78304.5x28/30 | 468000 | 2023 | |
| Extractor Tower No. 1 | Q345R | DN6600x62829.5x28/30 | 405000 | 2023 | |
| Residual liquid pumping tower | Q345R | DN6300/9300/10800x | 1550000 | 2023 | |
| 85800x34/50/62/76/98 | |||||
| Benzene-Toluene Tower | Q345R | DN6400x77600x28/30 | 495000 | 2023 | |
| Separation tower | S31603 | DN4000*19900*24 | 59000 | 2023 | Ningbo Zhenhai Xinhecheng Biotechnology Co. |
| Degassing chamber | S31603+Q345R | DN3800*16208*3+24 | 47000 | 2023 | Sinopec Shanghai Engineering Company-Shandong Lianhong Vinyl Acetate Project |
| 1# Ammonia washing tower | S30403+Q345R | DN2400*13610*(4+50) | 49000 | 2023 | Hualu Engineering-Xinjiang Zhongtai New Material Resourceful Comprehensive Utilization of Methanol Project Purification Plant |
| 2# Ammonia washing tower | S30403+Q345R | DN2400*13410*(4+50) | 49000 | 2023 | |
| Maleic Anhydride Absorption Tower | Q345R+S31603 | DN9700×45000×(3+30) On site manufacturing | 663000 | 2023 | SINOPEC Qingdao Refining & Chemical Co., Ltd. LPG Safety Enhancement (Maleic Anhydride) Project |
| Maleic Anhydride Absorption Stripper | S31603/ | DN2800×12000×16 | 67000 | 2023 | |
| Q345R+S31603 | |||||
| Deethanization tower | 09MnNiDR | DN2800×50000×36 | 185000 | 2023 | |
| Depropanization tower | Q345R | DN3000×65000×28 | 230000 | 2023 | |
| De-Isobutane Tower | Q345R | DN5000×75000×28 | 405000 | 2023 | |
| Maleic Anhydride Resolution Tower | S31603+Q345R | DN7000×30000×30 On site manufacturing | 285000 | 2023 | |
| Maleic Anhydride Product Tower | Q345R | DN3500×30000×18 | 70000 | 2023 | |
| 1#Propylene tower | Q345R | DN8000*63950*54/42 | 950000 | 2023 | CNOOC Ningbo Daxie Petrochemical Co., Ltd. catalytic joint unit 250,000 tons / year olefin separation |
| 2#Propylene tower | Q345R | DN9000*107200*64/48 | 1900000 | 2023 | |
| Vinyl Towers | S30408 | DN3200*79200*36/32 | 280000 | 2023 | |
| Adsorption column | Q345R | DN2000*15970*14 | 14320 | 2023 | 100,000 tons/year granular silicon project of Inner Mongolia Xinhuan Silicon Energy Technology Co. |
| High-boiling distillation columns | Q345R | DN1000*30900*16/14 | 14095 | 2023 | |
| High boiling enrichment tower | Q345R | DN1600*31350*16 | 24507 | 2023 | |
| Coarse division Tower B | Q345R | DN3400*75810*22/24/20 | 158680 | 2023 | |
| Coarse fractionation Tower A | Q345R | DN4000*65560*30/22/20 | 169340 | 2023 | |
| Deaerator | 09MnNiDR+S30408 | DN4400*65/DN2000 | 84500 | 2022 | Lihua Yiwei Yuan Chemical Co., Ltd. 300,000 tons/year Epichlorohydrin project |
| *26+4*17460 | |||||
| Depropanization tower | 09MnNiDR | DN3600*57440*38/36 | 206450 | 2022 | |
| Deaerator | 09MnNiDR+S30408 | DN4400*65/DN2000 | 84500 | 2022 | 600,000 tons/year epichlorohydrin project of Tianchen Quangang New Materials Co. |
| *26+4*17460 | |||||
| Tail gas absorption tower | Q345R+S30408 | DN3600*32+4/DN1800 | 70400 | 2022 | |
| *18+4*39250 | |||||
| Flash tower | S30408 | DN4200*14/12*37350 | 64500 | 2022 | |
| Propylene Recovery Tower | 09MnNiDR+S30408 | DN3800*36+4*42600 | 170400 | 2022 | |
| Depropanization tower | 09MnNiDR | DN3600*38/36*57440 | 206450 | 2022 | |
| Product Refining Tower | S30408 | DN4500*34/28/24/20 | 273350 | 2022 | |
| *80335 | |||||
| Water washing tower | Q345R/CompositeS31603 | DN4800*105+4/ | 331000 | 2022 | Tianchen Engineering-Lunan Chemical Caprolactam Supporting Plant |
| 95+4*26950 | |||||
| Chlorination furnace | Q345R/Inconel600 | DN5572*12870*24/38 | 92550 | 2022 | Annual output of 80,000 tons of chlorinated titanium dioxide project of Bengbu National Titanium Nanomaterials Co. |
| Rapid cooling tower | Q345R | DN920*5890*12 | 2022 | ||
| Rapid cooling tower | Inconel600 | 2022 | |||
| Converter gas scrubber | 09MnNiDR | DN2400*50/60*92360 | 324000 | 2022 | Tongliao Jianlong Acid-making Raw Material Ammonia Upgrading Project |
| CO2 resolving tower | 09MnNiDR | DN2400*22*72260 | 104000 | 2022 | |
| H2S Concentrato | S30408 | DN2400*26/28*56350 | 108000 | 2022 | |
| Water extraction tower | S31603 | DN3800*39840* | 73200 | 2022 | Huizhou Zhongxin Industry Co., Ltd. 240,000 tons/year bisphenol A |
| +Q345R | (3+16) | ||||
| Masterbatch depentanization tower | S30403+Q345R,N10276+Q345R | DN3700/2500* | 50500 | 2022 | |
| 25960*(3+14) | |||||
| Steam stripping tower | S31603 | DN2400/1900/650*31325*(3+48/26/12) | 123500 | 2022 | |
| +Q345R | |||||
| Distillation tower | Q345R | DN3200*62360*24/22/20 | 162482 | 2022 | Hualu Engineering Technology Co., Ltd-Jiangsu Xinhua high-purity silicon material quality improvement technology reform project |
| Rapid cooling tower | Q345R | DN1600*2935*22 | 32021 | 2022 | |
| Butynediol Stripping Tower | S30403 | DN3800/3200* | 70800 | 2022 | Hualu Engineering Science and Technology Co., Ltd - PBAT New Material Industry Chain Integration Project of Tongde Kechuang Material Co. |
| 34710*16 | |||||
| Formaldehyde Stripping Tower | S30408 | DN1200*29040*10/12 | 15700 | 2022 | |
| Atmospheric tower | S30408 | DN2000*21850*12 | 17200 | 2022 | |
| Butyl alcohol tower | S30408 | DN1100*17050*10 | 7000 | 2022 | |
| Distillation tower | S11306+Q345R/ Q345R | Ø5400x12750/ Ø7200x22600x(20+3/26/34) | 275000 | 2022 | Shandong Yulong Petrochemical 1#10 million tons/year atmospheric distillation unit |
| Atmospheric tower | N08367+Q345R/ S31603+Q345R | Ø8600x58900x(28+3) | 620000 | 2022 | |
| Decompression tower | S11306+Q345R/ S31603+Q345R | Ø6400/Ø11800/Ø6000 x50382x(42+3/26+3) | 750000 | 2022 | |
| Flash tower | Q345R | Ø7200x(20800/33000)x24 | 212000 | 2022 | |
| Fractionator | UpperQ345R(normalized);下部Q345R(normalized)+S11306 | DN7000*(22+3)/22*55612 | 295000 | 2022 | Shandong Yulong Petrochemical 3 million tons/year catalytic cracking unit |
| Propylene distillation column | Q345R(normalized) | DN6000*44*84860 | 635000 | 2022 | Shandong Yulong Petrochemical 2 # 700,000 tons / year gas fractionation plant |
| Buffer tank for post-filtration raw oil | S30403+Q345R | ∅4800X(26+3)X9000(T/T) | 93000 | 2022 | Shandong Yulong Petrochemical 3×2.6 million tons of residual oil hydrotreating plant |
| Distillation tower | S11306+Q345R/ Q345R | Ø5400x12750/Ø7200x22600x(20+3/26/34) | 275000 | 2022 | Shandong Yulong Petrochemical 1#10 million tons/year atmospheric distillation unit |
| First extractive distillation column (lower) | Q345R | DN3200/5492*79300*22 | 163000 | 2022 | Sanjiang chemical Co., Ltd. annual output of 80,000 tons of butadiene extraction plant |
| First extractive distillation column (top) | Q345R | DN3200/5492*79300*22 | 162500 | 2022 | |
| Second extractive distillation column (lower) | Q345R | DN3200/4436*62650*22 | 110400 | 2022 | |
| Second extractive distillation column (above) | Q345R | DN2500/4384*62280*20 | 89400 | 2022 | |
| Alkynes flash evaporator | Q345R | DN1200/2648*42380*20/24/28 | 36770 | 2022 | |
| Weight-lifting tower | Q345R | DN3000/4988*73580*22/24/26 | 148700 | 2022 | |
| Delftware | Q345R | DN1600/3244*48500*20/22 | 49110 | 2022 | Acetonitrile Recovery Tower |
| Carbon tetrachloride scrubbing tower | Q345R | DN2100/2488*38080*14/20 | 30570 | 2022 | |
| Acetylene scrubber | Q345R | DN1600/1944*25880*12/16 | 13950 | 2022 | |
| Acetonitrile Recovery Tower | Q345R | DN1600/2276*39800*16 | 32200 | 2022 | |
| Water extraction tower | Q345R+S31603 | DN1300/2000/3800*14+3/16+3/20+3*41080 | 74000 | 2022 | Bisphenol A Project of Jiangsu Ruiheng New Material Technology Co. |
| Stripper (chemistry) | Q345R/Q345R+ | DN1900*42+4/DN2400*46+4/DN2150*26/ | 109200 | 2022 | |
| S31603 | DN2650*30*31669 | ||||
| Propane Propylene Separation Tower | Q345R | DN9600*97100* | 1057279 | 2021 | Donghua Energy (Maoming) Alkane Resource Comprehensive Utilization Project Phase I 1#600,000 tons/year propane dehydrogenation |
| 32/36/38/40 | |||||
| Depropanization tower | Q345R | DN4500*64255*30 | 271016 | 2021 | |
| Deethane gas lift tower | Q345R | DN5000/7000*67523*34/48/56/76/94 | 951590 | 2021 | |
| Discharge scrubber | S30403 | Φ3800×14840×18 | 45000 | 2021 | Annual output of 5 million tons of PTA, 2.4 million tons of new functional fibers and 10,000 tons of benzoic acid, 5,600 tons of acetaldehyde petrochemical polyester integration project of Jiangsu Jiatong Energy Co. |
| Emptying the scrubber tower | S30403 | Φ6400/4900/1400×43123×14/36 | 190700 | 2021 | |
| Water removal tower | S30403 | Φ6750/3400/2100×42800×20/26/24/42 | 190260 | 2021 | |
| Propylene tower Ⅰ-1 | Q345R | Φ7000×83700×56 | 910000 | 2021 | 1.6 million tons/year Gas Separation Unit of Refining to Chemical Structural Adjustment Project of SINOPEC Anqing Branch Company |
| Q345R Propylene Tower II-1 | Q345R | Φ7000×83700×56 | 910000 | 2021 | |
| Depropanization tower | Q345R | Φ5800/5000×54200×38/44 | 360000 | 2021 | |
| Deethanization tower | Q345R | Φ4200/3400×46600×38/54 | 270000 | 2021 | |
| Converter scrubber | 08Ni3DR | DN3600/3400*92*82666 | 655560 | 2021 | Cangzhou Xuyang Chemical Co., Ltd. caprolactam expansion project hydrogen synthesis ammonia plant low-temperature tower equipment |
| Medium Pressure Flash Steam Tower | 09MnNiDR | DN3200*26*34346 | 89000 | 2021 | |
| H2S Concentrator | S30408 | DN4000*22*73084 | 137800 | 2021 | |
| Propane Propylene Separation Tower | Q345R | Φ10600×34×112300 | 1600000 | 2021 | Guangxi Huayi New Material Co., Ltd. 750,000 tons/year propylene and downstream deep processing integration project PDH device |
| Deethane gas lift tower | 09MnNiDR | Φ7300/5400×80×66400 | 1100000 | ||
| Depropanization tower | Φ5100×36×65450 | 342000 | |||
| Deethanization distillation columns | Φ4900×60×29050 | 120000 | |||
| 1#Propylene tower | Q345R | Φ6000×44×50000~55000 | 542000 | 2021 | Sinopec Hainan Refining & Chemical Co. Ethylene Project Ethylene Plant Plate Tower |
| 2#Propylene tower | Φ7800×56×90000~95000 | 1350000 | |||
| Alkali washing tower | Φ5000×42×55000~60000 | 447000 | |||
| Xylene tower | Q345R | Φ7600/6400×38/46×83770 | 900000 | 2021 | Hainan Refining & Chemistry Refining & Supporting System Two Aromatics Units |
| Alkaline washing tower, Ethylene distillation tower | Q345R,09MnNiDR | DN6600*55*55850 | 520000 | 2020 | Zhenhai Refining 1.2 million tons/year ethylene project Ethylene Cracker |
| DN6400*70*89000 | 1060000 | ||||
| Styrene tower, Styrene light component tower | Q345R | DN7800*45*19945 | 243000 | 2020 | Zhenhai Refining 1.2 million tons/year ethylene project PO/SM installations |
| DN8100*50*25800 | 332000 | ||||
| PP degassing silo | Q345R | Φ4100/8400×43329×16/24/30 | 430800 | 2020 | PP plant of 1.2 million tons/year propane dehydrogenation to high-Reference list polypropylene project of Dongguan Juzhengyuan Technology Co. |
| Emergency Oil Cooling Tower | Q345R、1.25Cr-0.5Mo-Si | Ф4600*2400*30 | 142500 | 2020 | Lihua Yi Lijin Refining & Chemical Co., Ltd. 1 million tons/year olefin aromatics joint project |
| Water washing tower | 13MnNiMOR+S31603 | DN3600*64+4*22690 | 280000 | 2020 | China Wuhuan Engineering Co., Ltd. Hubei Yunhua'an Synthetic Ammonia Relocation and Technical Improvement Project |
| Propylene Propane Separation Tower | Q345R、13MnNiMOR | DN10000*32/38*108000 | 2319000 | 2020 | Jiangsu Sierbang Petrochemical 700,000 tons/year PDH |
| Depropanization tower | DN4700*32*67450 | ||||
| Deethanization Stripper | DN7000*80/95*60532 | ||||
| washing tower | Q345R+S30403 | DN9200*(66+3)*105975 | 1750000 | 2020 | Sanjiang Chemical EO/EG Project |
| Pre-distillation column | Q345R(N) | DN4600*28/18*41930 | 94000 | 2020 | Chengda Engineering Guangxi Huayi Energy Chemical Gasification Island Project Methanol Plant |
| Decompression distillation columns | Q345R(N) | DN6000*22/24*55680 | 207000 | 2020 | |
| Pressurized distillation columns | Q345R(normalized) | DN3200*28/16*57770 | 100000 | 2020 | |
| Atmospheric distillation columns | Q345R(N) | DN4000*20/18*58830 | 125000 | 2020 | |
| Recovery distillation columns | Q345R(N) | DN1400*14/18*33640 | 28000 | 2020 | |
| Disproportionation Stripping Tower, Benzene Tower, Toluene Tower, Heavy Aromatics Tower | Q345R、Q345R | φ10100x74800x44 φ8600x63750x26/24 | 4130000 | 2020 | Sheng Hong Refining & Chemical (Lianyungang) Company Limited Integration Project 1#2# Disproportionation Unit |
| φ6300x58000x22 | |||||
| φ6000/4800x50060x20/24/18 | |||||
| Turret | Q345R、S30408、09MnNiDR | DN5000*32*75900、DN7200*30*61700 | 2728000 | 2020 | PetroChina Tarim Oilfield Ethane to Ethylene Project |
| CO2 scrubber | Q345R+S30403 | DN8100*(52+3)*69650 | 900000 | 2019 | Sheng Hong Refining & Chemical (Lianyungang) Company Limited Integration Project 1#2#Glycol Plant |
| EO scrubber | Q345R+S30403 | DN9700*(76+3)*49550 | 1010000 | 2019 | |
| Carbon dioxide desorption tower | Q345R+S30403 | DN4700*(30+3)*68750 | 286000 | 2019 | |
| EO parse tower | Q345R+S30403 | DN7200*(32+3)*43450 | 225000 | 2019 | |
| Water extraction tower | Q345R+S30403 | DN10600/DN6800*(24+3)*23150 | 160000 | 2019 | |
| MEG Tower | Q345R+S30403 | DN8000*(28+3)*31950 | 220000 | 2019 | |
| washing tower | 09MnNiDR | DN3400/3800*56/62*85554 | 516000 | 2019 | Wison Engineering--Fujian Shenyuan New Material Project |
| CO2 Desorption Tower | 09MnNiDR | DN3400*30*73460 | 210000 | 2019 | |
| converter gas scrubber | 09MnNiDR | DN4000*72*89500 | 660000 | 2019 | Shaanxi Coal Yulin Chemical 1.8 million tons/year ethylene glycol project |
| Syngas scrubber | S31603+Q345R | DN4600*80+5*27900 | 250000 | 2019 | Gasification Unit of Sheng Hong Refining and Chemical Integration Project |
| CO2 product tower | 09MnNiDR | DN3700/2700*24*82600 | 199000 | 2019 | Tianchen Engineering Guangxi Huayi Energy Chemical Gasification Island Project |
| Thermal regeneration tower | Q345R | DN7700/4200*38*76200 | 240000 | 2019 | |
| Decompression distillation columns | Q345R | DN6000*22/24*55680 | 223000 | 2019 | |
| Emergency water tower | Q345R | DN7200*30*61700 | 385000 | 2019 | PetroChina Tarim Oilfield Ethane to Ethylene Project |
| Vinyl Towers | S30408 | DN5000*32*75900 | 390000 | 2019 | |
| Gas Methanol Scrubber | 09MnNiDR | DN1900*48*69350 | 186600 | 2019 | Energy-saving and Emission Reduction Technology Reform Project of Jiangsu Sopo Gas-making Reform Process |
| Methanol scrubber for changeover gas | 09MnNiDR | DN2000*54*75400 | 245200 | 2019 | |
| water washing tower | 13MnNiMOR+S31603 | DN3600*64+4*22690 | 143000 | 2019 | Five Ring Engineering Hubei Yunhuaan Chemical Co. |
| 1#Propylene tower | Q345R | Ф8200*79000 | 680000 | 2018 | Zhongke Zhanjiang 15 million tons refining project |
| 2#Propylene tower | Q345R | Ф7400*83000 | 590000 | 2018 | |
| Propane Propylene Separation Tower | Q345R | Ф9700×40×107800 | 950000 | 2018 | Donghua Energy Ningbo Petrochemical 660,000 tons of propane dehydrogenation to propylene 400,000 tons of polypropylene |
| De-Propane Tower No. 1 | Q345R | Ф5300×36×46160 | 245000 | 2018 | |
| Deethane gas lift tower | 13MnNiMoR | Ф7000×64×54600 | 650000 | 2018 | |
| Product degassing bin | Q345R | Ф5900/4400×20/16 | 200000 | 2018 | |
| ×44000 | |||||
| 13MnNiMoR+S31608 | Q345R | Ø4500*27403 | 260000 | 2018 | Yantai Wanhua Chemical Group Co., Ltd. 1 million tons of ethylene |
| Pre-Demethanizer | 08Ni3DR | Ф5400×41550×68 | 508000 | 2018 | |
| High Pressure Depropanization Tower | 09MnNiDR normalizing | Ø5000/2500*60320*30 | 245000 | 2018 | |
| Deethanization Tower | 09MnNiDR normalizing | Ø5700*73380*62 | 625800 | 2018 | |
| Product degassing bin | Q345R normalizing | Ø7200*46566*20 | 238000 | 2018 | |
| Coarse coal filter | SA387 Gr11 CL2 | Ø3600*11500*100 | 81000 | 2018 | |
| reactor | Q345R | Ø5600*43115*54 | 455000 | 2018 | |
| alkali washing tower | Q345R | Ø4500*66160*38 | 325000 | 2018 | |
| stripper (chemistry) | S30408 | DN3200*/2400*18900 | 30000 | 2018 | Hualu Engineering--Inner Mongolia Rongxin Chemical Glycol Project |
| *12/16 | |||||
| H2S Concentrator | S32168 | DN5000*99300*34 | 420000 | 2018 | |
| Thermal regeneration tower | Q245R | DN3200/6000*70400*34 | 190000 | 2018 | |
| Methanol/water separation tower | Q245R | DN1500/3100*36750*20 | 46000 | 2018 | |
| exhaust scrubber | S30403+Q345R | DN5000*28700*18 | 94000 | 2018 | |
| water washing tower | S31603+13MnNiMoR | DN4600×4+100 H=29040 | 275000 | 2018 | |
| cyclone separator | S31603+13MnNiMoR | DN4200×4+100 H=26040 | 240000 | 2018 | |
| DMO Vaporization | S30403+Q345R | DN3600×(3+50) H=15840 | 80300 | 2018 | Wuhuan Engineering--Inner Mongolia Rongxin Chemical Ethylene Glycol Projec |
| Nitric acid reduction tower | S30403 | DN3800*22*21000 | 55000 | 2018 | |
| water cooling tower | 13MnNiMoR+S31603 | Ø4500*27403 | 260000 | 2017 | Yantai Wanhua Chemical Group Co. |
| Residual liquid pumping tower | Q345R | Ø10700×78949×34 | 950000 | 2017 | Zhejiang Hengyi (Brunei) 15 million tons of oil refining, 1.5 million tons of aromatics, 8 million tons of atmospheric decompression distillation combined plant |
| Heptane removal tower | Q345R | Ø6700×49737×22 | 240000 | 2017 | |
| Reformulated Oil Separation Tower | Q345R | Ø6000/Ø5200×49158×18 | 165000 | 2017 | |
| Xylene Tower No. 1 | Q345R | Ø7800/Ø7100×72649×38/56/34 | 610000 | 2017 | |
| Xylene Tower No. 2 | Q345R | Ø7800/Ø7100×72649×44/60/42 | 710000 | 2017 | |
| distillation tower | S11306+Q345R | φ4600/φ5200×47707×24/22/20/18/3+14 | 125000 | 2017 | |
| Q345R Normalized | |||||
| atmospheric tower | H03306+Q345R S30403+Q345R | φ7200×65267×26/3+24 | 324000 | 2017 | |
| atmospheric stripping tower | S11306+Q345R | DN3200×46400×14/12/3+12 | 58000 | 2017 | |
| decompression tower | S11306+Q345R | DN9800/DN5600×50545×28/3+32/3+20 | 350000 | 2017 | |
| absorber tower | S11306+Q345R | DN2200×53107×14/3+14 | 65000 | 2017 | |
| desorption tower | S11306+Q345R | DN3200/DN2000×52968×14/3+16/3+10 | 86000 | 2017 | |
| stabilization tank | S11306+Q345R | DN4600/DN3000×53749×18/26/40/44/3+22 | 220000 | 2017 | |
| Saturated liquefied gas desulphurization tower | S30403+Q345R | φ2600×23923×12/3+24 | 56000 | 2017 | |
| Disulfide distillation column | S30403+Q245R | φ1600×14038×8/3+10 | 11000 | 2017 | |
| NCU30+Q245R | |||||
| PP degassing silo | Q345R | Φ8400/4100×45989×30 | 226000 | 2017 | 600,000 tons of propane dehydrogenation to propylene and 450,000 tons of polypropylene from Dongguan Juzhengyuan Technology Co. |
| PP degassing silo | Q345R | Φ4200/3100×26000×30 | 130000 | 2017 | Ningxia Baofeng Energy Company Polypropylene Project |
| water cooling tower | Q345R | Ø4500*27403 | 260000 | 2017 | Yantai Wanhua Chemical Group Co. |
| Propylene distillation column | Q345R | DN6100×46/76×109400 | 900000 | 2016 | Xinpu Olefin (Taixing) Co. |
| Vinyl Towers | S30408 | DN6100×42×93900 | 650000 | 2016 | |
| Emergency water tower | Q345R | DN7300/DN6200×(20/22/28/40)×60400 | 370000 | 2016 | |
| Pre-Demethanizer | S30408 | DN4100/DN2300×(36/62/70)×59400 | 370000 | 2016 | |
| High Pressure De-Propylene Tower | 09MnNiDR | DN3900//DN2100×46×38550 | 108 | 2017 | Singapore SP Chemicals (Taixing) Co., Ltd. 1.1 million tons of ethane cracking to ethylene |
| Propylene Stripper | Q345R | DN4800×40×64170 | 321300 | 2016 | Xinpu Olefin (Taixing) Co. |
| distillation | S30408 | DN2200×16×30200 | 31500 | 2016 | Jiangsu Huachang Chemical Co. |
| Pre-distillation column | S30408 | DN1600×12×38130 | 26800 | 2016 | |
| isomerization tower | Q345R+ S30408 | DN3200×(18+3)×69100 | 117400 | 2016 | |
| water washing tower | 13MnNiMoR+ S31603 | DN3400×(65+4)×21535 | 130000 | 2016 | |
| Naphtha Fractionator | SA-516M Gr.485 | DN2440/DN1990×24/16×49950 | 71000 | 2016 | Hualu Engineering/Pakistan National Oil Refining Company |
| stripper (chemistry) | SA-516M Gr.450N(H2S) | DN1830/DN1380×24/20×45380 | 51000 | 2016 | |
| Circulator scrubber tower | SA-516M Gr.450N(H2S) | DN1070×34×15010 | 18000 | 2016 | |
| stripper (chemistry) | SA-516M Gr.450N(H2S)+316L | DN1990/DN1220×20/3+12×31470 | 29000 | 2016 | |
| Debutanizer | SA-516M Gr.450N(H2S) | DN920/DN460×16/12×27926 | 13000 | 2016 | |
| net steam extraction scrubber | SA-516M Gr.485 | DN2440/DN820×16/12×19130 | 13600 | 2016 | |
| Ammonia regeneration tower | SA-516M Gr.450N(H2S) | DN3430×22×27704 | 67000 | 2016 | |
| ammonia absorption tower | SA-516M Gr.450N(H2S) | DN1530×16×18600 | 13800 | 2016 | |
| Acid water stripping tower | SA-516M Gr.450N(H2S) | DN1660×20×38510 | 43000 | 2016 | |
| Circulator scrubber tower | SA-516M Gr.450N(H2S) | DN1070×34×15010 | 18000 | 2016 | |
| stripper (chemistry) | SA-516M Gr.450N(H2S)+316L | DN1990/DN1220×20/3 | 29000 | 2016 | |
| 377640 | |||||
| Debutanizer | SA-516M Gr.450N(H2S) | DN920/DN460×16/12 | 13000 | 2016 | |
| ×27926 | |||||
| net steam extraction scrubber | SA-516M Gr.485 | DN2440/DN820×16/12 | 13600 | 2016 | |
| ×19130 | |||||
| Ammonia regeneration tower | SA-516M Gr.450N(H2S) | DN3430×22×27704 | 67000 | 2016 | |
| ammonia absorption tower | SA-516M Gr.450N(H2S) | DN1530×16×18600 | 13800 | 2016 | |
| Acid water stripping tower | SA-516M Gr.450N(H2S) | DN1660×20×38510 | 43000 | 2016 | |
| atmospheric tower | Q345R+ S11306 | DN4400×(16+3)×56940 | 192000 | 2015 | CNOOC (Taizhou) Petrochemical-Integrated Project |
| decompression tower | Q345R+ S11306 | DN7200×(22+3)×60392 | 320000 | 2015 | |
| Propane Propylene Separation Tower | Q345R | Ф9700×40/32×10780 | 960000 | 2015 | Donghua Energy Ningbo Fuki Petrochemical PDH Project |
| Deethane gas lift tower | 13MnNiMoR | Ф7000×64×54700 | 641060 | 2015 | |
| De-Propane Tower No. 1 | Q345R | Ф5300×36×46160 | 237900 | 2015 | |
| Product degassing bin | Q345R | Ф5900/4400×20/16 | 200000 | 2015 | Ningbo Fuki Petrochemical 660,000 tons propane dehydrogenation to propylene 400,000 tons polypropylene (UOP process package) |
| ×44000 | |||||
| Vinyl Towers | 09MnNiDR | Ф3800×28×72360 | 210000 | 2015 | Lianyungang Sierpont 900,000 tons MTO plant |
| Emergency Oil Cooling Tower | Q345R | DN8000×20~34×45900 | 251000 | 2015 | Ningxia Coal Chemical By-products Deep Processing and Comprehensive Utilization Project |
| Emergency water tower | Q345R | DN6500×30/DN8800× | 409000 | 2015 | |
| 28~30×45275 | |||||
| Deethanization tower | 16MnDR | DN2800×32~48/DN3800×42~48×53150 | 210000 | 2015 | |
| Debutanizer | Q345R | DN2600×12×34650 | 37000 | 2015 | |
| Feedstock depropanizer | Q345R | DN3000×26~44×50950 | 130000 | 2015 | |
| Raw material C3 fractionator | Q345R | DN4200×36~44×69300 | 322000 | 2015 | |
| 1#Propylene tower | Q345R | DN6600×36~56×80500 | 590000 | 2015 | |
| extraction tower | Q345R | DN1800×14/32/16× | 35870 | 2015 | |
| 40900 | |||||
| stripper (chemistry) | Q345R | DN2000×16/34×41350 | 43370 | 2015 | |
| recovery tower | Q345R | DN2200×18/16/36/14 | 50790 | 2015 | |
| ×41850 | |||||
| Dimethyl ether removal tower | Q345R | DN2400×16/38×47750 | 61845 | 2015 | |
| De-Octane Tower | Q345R | DN2500×18/16/40×41860 | 56000 | 2015 | |
| Gasoline two-stage hydrogenation stripper | Q345R | DN1700×16/30×36300 | 31690 | 2015 | |
| De-pentane tower | Q345R | DN1800×14×36600, | 29825 | 2015 | |
| Oxide Extraction Tower | Q345R | DN3200×20/48×5200(T-T)/DN2400×26/18×28400(T-T) | 77155 | 2015 | |
| /DN3200×26×3500(T-T),H=44325, | |||||
| Wash water recovery tower | Q345R | DN1200×12×6900(T-T)/DN2000×16/36×38160 | 35665 | 2015 | |
| carrier gas separation tower | 09MnNiDR | DN1050×18/30×7150/DN1600×26/34×46400 | 54745 | 2015 | |
| C02 flash evaporator | 09MnNiDR | Ф4200×46×38490 | 91340 | 2014 | Xinjiang Xinye, Saidingyuan |
| H2S Concentrator | 09MnNiDR | Ф3600×24×52956 | 113700 | 2014 | |
| atmospheric tower | S11306+Q345R/UNS N08367+Q345R | DN4400×(3+16) L=56940 | 192000 | 2014 | CNOOC (Taizhou) Petrochemical Integration Asphalt \ Lubricating Oil Technology Reform Project |
| decompression tower | S11306+Q345R/S30403+Q345R | DN7200×(3+22) L=60392 | 320000 | 2014 | |
| Propane Propylene Separation Tower | Q345R | Ф9700×40×107800 | 950000 | 2013 | Zhangjiagang Yangzijiang Petrochemical 660,000 tons propane dehydrogenation to propylene 400,000 tons polypropylene (UOP process package) |
| De-Propane Tower No. 1 | Q345R | Ф5300×36×46160 | 245000 | 2013 | |
| Deethane gas lift tower | 13MnNiMoR | Ф7000×64×54600 | 650000 | 2013 | |
| Syngas scrubber | Q345R+S31603 | Ф4200×84+4×21630 | 260000 | 2013 | Shenhua Ning Coal 4 million tons/year Coal Indirect Liquefaction Project |
| washing tower | 14Cr1MoR+ S31603 | Ф4200×106+4×12675 | 260000 | 2013 | Zhongtian Hechuang Ordos Coal Chemical Project |
| H2S Concentrator | 08Ni3DR | DN3600×64350×16 | 115000 | 2012 | Tongxiang Guangfa 600,000 tons of methanol |
| Light Component Fractionator | Q345+S30408 | Ф5600×36798×3+16 | 216000 | 2012 | Yantai Wanhua Relocation Project |
| Ester purification tower | S30408 | Ф4800×21866×8 | 140000 | 2012 | |
| Absorption tower Feed cryogenic oil/gas separator | 09MnNiDR+S30403 | Ф4800×112+3×12160 | 184000 | 2012 | Ning Coal Indirect Liquefaction Project |
| pre-excitation cooling tower | S31603+Q345R | Ф6000×3+48×28850 | 176200 | 2012 | Ning Coal Methanol to Olefin Project |
| absorber tower | 16MnDR+S30403 | Ф3800×84+3×39600 | 336000 | 2012 | Ning Coal Indirect Liquefaction Project On-site Manufacturing |
| Depropanization tower (DME absorption tower) | S30403+Q345R | Ф4400×3+48×90000 | 568000 | 2012 | Ning Coal Methanol to Olefin Project On-site Manufacturing |
| Circulating gas washing tower | Q345R+S30408 | Ф5000×62+3×20500 | 372690 | 2012 | Shanxi Lu'an High-Sulfur Coal Clean Utilization Project On-site Manufacturing |
| washing tower | Q345R+S31603 | Ф4800×84+3×8500 | 138110 | 2012 | |
| Pressurized regeneration tower | Q245R+S30408 | Ф6000×28+3×61500 | 255320 | 2012 | |
| H2S Concentrator | S30408 | Ф3100×20×61710 | 73800 | 2012 | Anqing Shuguang Chemical Coal-to-Hydrogen Project On-site Manufacturing |
| Tail gas washing tower | S30408 | Ф2600×8×15500 | 10100 | 2012 | |
| washing tower | 13MnNiMoR+316L | DN3600×26000×82+3 | 175000 | 2011 | Yanchang Jingbian Energy Chemical Project |
| CO2 product tower | 0Cr18Ni10Ti | DN2800×57000×22 | 126500 | 2011 | Inner Mongolia Rongxin Chemical Industry Field group on |
| CO2 flash tank | 0Cr18Ni10Ti | DN2800×10790×16 | 186500 | 2011 | |
| H2S Concentrator | 0Cr18Ni10Ti | DN4200×67000×26 | 16000 | 2011 | |
| Oxide Extraction Tower | 16MnR | φ4400 ×78×32950 | 217500 | 2008 | Shenhua Ning Coal Propylene Project Site Production |
| Debutanizer | 16MnR | φ6350 ×80×51850 | 560000 | 2008 | |
| pressurized tower | 16MnR | φ5600 ×42×66800 | 425000 | 2008 | |
| atmospheric tower | 16MnR | φ7300 ×52×70750 | 528500 | 2008 | |
| C3 Separation Tower | 16MnR | φ8000×80×100300 | 2024000 | 2008 | |
