Copper Smelting Waste Heat Boiler
Cooperation Cases

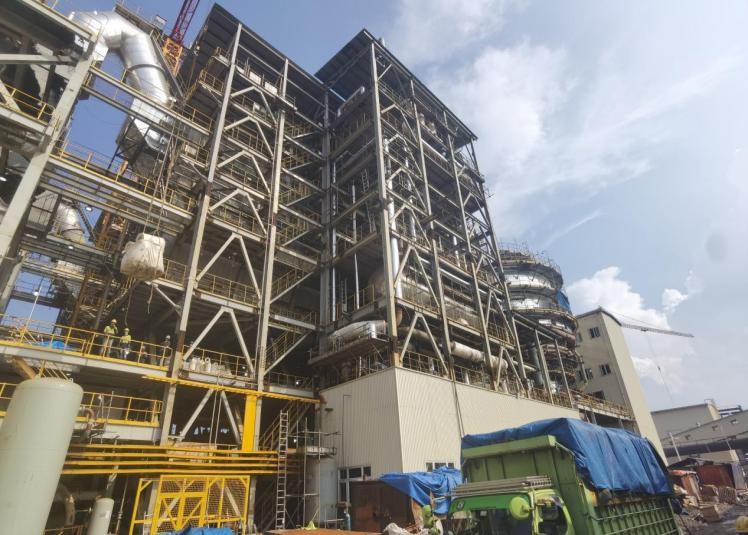

PT Merdeka Tsingshan Indonesia 600,000 t/a Pyrite-based Sulfuric Acid Fluidized Bed Waste Heat Boiler Project
Evaporation capacity: 91 t/h
Steam pressure: 6.6 Mpa
Steam temperature: 320℃

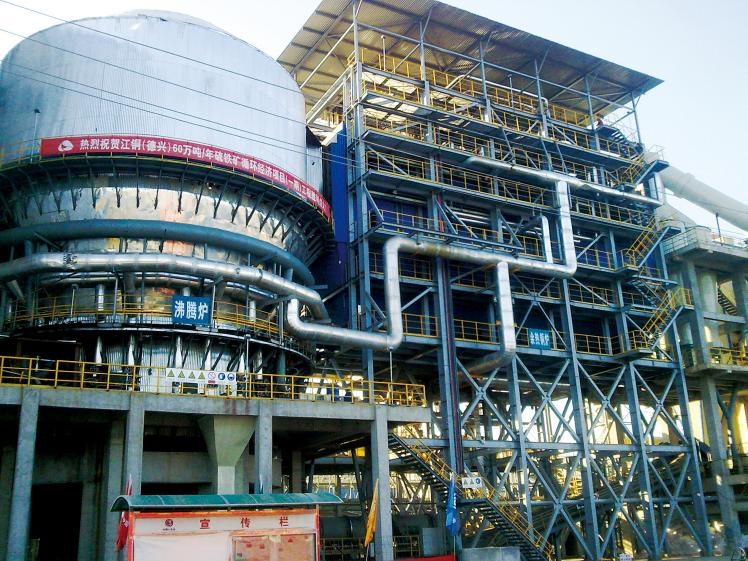

Heat Recovery Boiler for the Roasting Furnace of Jiangxi Copper (Dexing) Chemical Co., Ltd.
Evaporation capacity: 57 t/h
Steam pressure: 3.82 Mpa
Steam temperature: 450℃

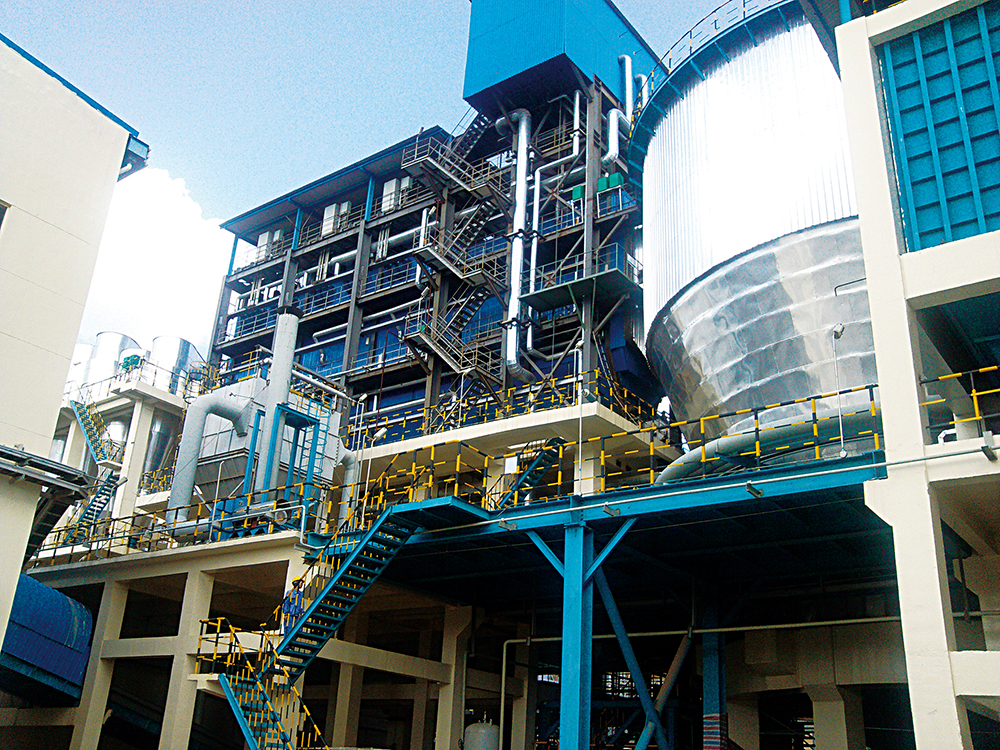

100 KTA Zinc Roasting WHB for Yunnan Chihong Zinc & Germanium Co., Ltd.
Evaporation capacity:35t/h
Steam pressure: 4.9MPa
Steam temperature: 264℃

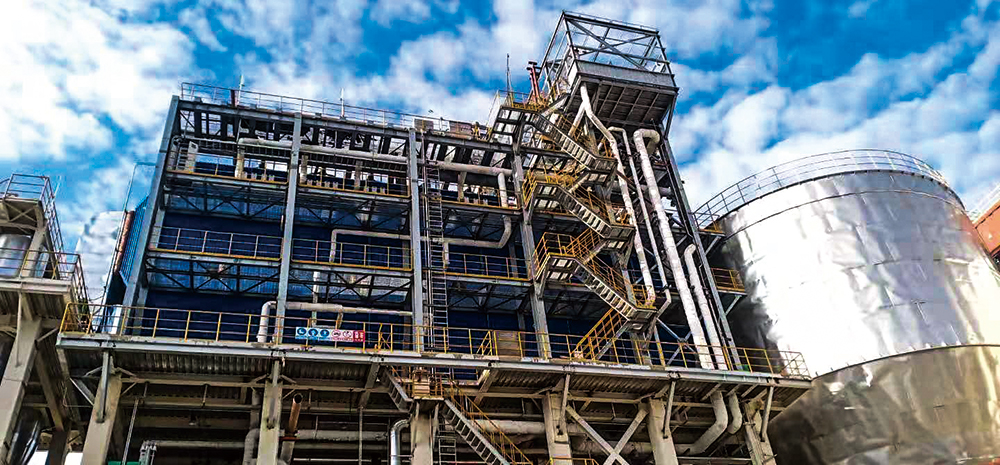

100 KTA Zinc Roasting WHB for Xinjiang Zijin Nonferrous Metals Co., Ltd.
Evaporation capacity:32t/h
Steam pressure: 4.4MPa
Steam temperature: 257℃
| Performance List of Waste Heat Boilers for Lead-Zinc Smelting | ||||||
| Boiler Model | Evaporation Capacity (t/h) | Working Pressure (MPa) | Working Temperature (℃) | Type | Production Year | Customer Name |
| Roaster Waste Heat Boiler (including Installation) | 50 | 4.5 | 258 | Forced Circulation | 2023 | Yunnan Yuntong Zinc Co., Ltd. |
| Volatilization Kiln Waste Heat Boiler (including Installation) | 16.4 | 4.5 | 258 | Natural Circulation | 2023 | Yunnan Yuntong Zinc Co., Ltd. |
| Side-blown Melting Furnace Waste Heat Boiler | 15 | 3.2 | 104 | Forced Circulation | 2020 | Northwest Lead-Zinc Smelter of Baiyin Nonferrous Metals |
| Fuming Furnace Waste Heat Boiler | 25 | 3.2 | 104 | Forced Circulation | 2020 | Northwest Lead-Zinc Smelter of Baiyin Nonferrous Metals |
| Rectification Furnace Waste Heat Boiler (including Installation) | 11.2 | 0.6 | 165 | Forced Circulation | 2020 | Shenzhen Zhongjin Lingnan Nonferrous Metals Co., Ltd. Shaoguan Smelter |
| Fuming Furnace Waste Heat Boiler (including Installation) | 26.5 | 3.2 | 239.2 | Forced Circulation | 2020 | Shenzhen Zhongjin Lingnan Nonferrous Metals Co., Ltd. Shaoguan Smelter |
| Kivcet Furnace Waste Heat Boiler (including Installation) | 37.3 | 4 | 251.8 | Forced Circulation | 2020 | Danxia Smelter of Shenzhen Zhongjin Lingnan Nonfemet Co., Ltd. |
| Roaster Waste Heat Boiler | 30 | 4 | 252 | Forced Circulation | 2019 | Xinjiang Zijin Nonferrous Metals Co., Ltd. |
| Rotary Kiln Waste Heat Boiler | 12 | 4 | 252 | Forced Circulation | 2019 | Xinjiang Zijin Nonferrous Metals Co., Ltd. |
| Side-blown Smelting Furnace Waste Heat Boiler | 30 | 5.1 | 258 | Forced Circulation | 2018 | Yunnan Chihong Zinc Germanium Co., Ltd. Huize Branch |
| Roaster Waste Heat Boiler (2 Sets) | 43.9 | 4 | 252 | Forced Circulation | 2018 | China Minmetals Nonferrous Metals Holding Co., Ltd. |
| Side-blown Reduction Waste Heat Boiler | 5 | 4.4 | 258 | Forced Circulation | 2018 | Qujing Branch of Yunnan Chihong Resource Comprehensive Utilization Co., Ltd. |
| Rotary Kiln Waste Heat Boiler (2 Sets) | 12.5 | 1.25 | 194 | Natural Circulation | 2018 | Bayannur Zijin Nonferrous Metals Co., Ltd. |
| Side-blown Reduction Furnace Waste Heat Boiler | 22 | 4.4 | 258 | Forced Circulation | 2018 | Hulunbuir Chihong Mining Co., Ltd. |
| Fuming Furnace Waste Heat Boiler | 42.5 | 4.4 | 258 | Forced Circulation | 2018 | Hulunbuir Chihong Mining Co., Ltd. |
| QCF62/950-37-4.0 Roaster Waste Heat Boiler | 37 | 4 | 250 | Forced Circulation | 2016 | Yunnan Tin Wenshan Zinc-Indium Smelting Co., Ltd. |
| QCF62/980-35-4.0 Slag Treatment Waste Heat Boiler | 35 | 4 | 250 | Forced Circulation | 2016 | Yunnan Tin Wenshan Zinc-Indium Smelting Co., Ltd. |
| QCF-4.6/161-260 (Ausmelt Smelting Furnace) | 161 | 4.6 | 260 | Forced Circulation | 2014 | Inner Mongolia Xing'an Copper and Zinc Smelting Co., Ltd. |
| QCF-4.6/27-260 (Fuming Furnace) | 27 | 4.6 | 260 | Forced Circulation | 2014 | Inner Mongolia Xing'an Copper and Zinc Smelting Co., Ltd. |
| Water-cooled Wall of Waste Heat Boiler Up-take Flue | 8 | 4 | 256 | Forced Circulation | 2013 | Hexigten Banner, Inner Mongolia |
| Reduction Furnace Waste Heat Boiler | 10-12（20） | 4 | 251.8 | Forced Circulation | 2013 | Mengzi Mining and Metallurgy Co., Ltd. |
| Fuming Furnace Waste Heat Boiler | 20-23（25） | 4 | 251.8 | Forced Circulation | 2013 | Mengzi Mining and Metallurgy Co., Ltd. |
| Bottom-blown Furnace Waste Heat Boiler | 7~9 | 4 | 251.8 | Forced Circulation | 2013 | Mengzi Mining and Metallurgy Co., Ltd. |
| 100,000 t/a Zinc Roasting Waste Heat Boiler | 35 | 4.4 | 258 | Forced Circulation | 2012 | Nandan County Nanfang Nonferrous Metals Co., Ltd. |
| Zinc Roasting Waste Heat Boiler | 35 | 4.4 | 258 | Forced-circulation Water-tube | 2010 | Yunnan Chihong Zinc Germanium Co., Ltd. Huize Branch |
| Kivcet Furnace Waste Heat Boiler | 28 | 4 | 251 | Forced-circulation Water-tube | 2010 | Jiangxi Copper Lead & Zinc Metal Co., Ltd. |
| Fuming Furnace Waste Heat Boiler | 25 | 4 | 250 | Forced-circulation Water-tube | 2010 | Jiangxi Copper Lead & Zinc Metal Co., Ltd. |
| ISA Furnace Waste Heat Boiler | 25 | 4.4 | 257 | Forced-circulation Water-tube | 2010 | Yunnan Chihong Zinc Germanium Co., Ltd. Huize Branch |
| Fuming Furnace Waste Heat Boiler | 26 | 4 | 251 | Forced-circulation Water-tube | 2010 | Zhuzhou Smelter Group Co., Ltd. |
| Kivcet Furnace Waste Heat Boiler | 30 | 4 | 260 | Forced-circulation Water-tube | 2010 | Zhuzhou Smelter Group Co., Ltd. |
| Fuming Furnace Waste Heat Boiler | 12 | 4 | 256 | Forced-circulation Water-tube | 2010 | Hulunbuir Chihong Mining Co., Ltd. |
| Top-blown Furnace Waste Heat Boiler | 29.5 | 4.4 | 350 | Forced-circulation Water-tube | 2010 | Hulunbuir Chihong Mining Co., Ltd. |
| Fuming Furnace Waste Heat Boiler | 16 | 4 | 256 | Forced-circulation Water-tube | 2010 | Yunnan Chihong Zinc & Germanium Co., Ltd. Qujing Branch |
| Fuming Furnace Waste Heat Boiler | 15 | 4 | 256 | Forced-circulation Water-tube | 2010 | Yunnan Chihong Zinc Germanium Co., Ltd. Huize Branch |
| Side-blown Furnace Waste Heat Boiler | 9 | 1.6 | 201 | Forced-circulation Water-tube | 2010 | Yunnan Chihong Zinc & Germanium Co., Ltd. Qujing Branch |
| Reduction Furnace Waste Heat Boiler | 19 | 4.4 | 256 | Forced-circulation Water-tube | 2010 | Yunnan Chihong Zinc Germanium Co., Ltd. Huize Branch |
| Zinc Roasting Waste Heat Boiler | 36 | 4 | 252 | Forced-circulation Water-tube | 2009 | Chifeng Smelter |
| Zinc Roasting Waste Heat Boiler | 35 | 3.2 | 400 | Forced-circulation Water-tube | 2009 | Northwest Lead-Zinc Smelter of Baiyin Nonferrous Metals |
| Zinc Concentrate Waste Heat Boiler | 14 | 3 | 233 | Natural Circulation | 2008 | Huludao Zinc Plant |
| Zinc Concentrate Waste Heat Boiler | 8 | 3.82 | 250 | Forced-circulation Water-tube | 2008 | Chengzhou Zinc Industry Co., Ltd. |
| Zinc Concentrate Waste Heat Boiler | 28 | 4 | 252 | Forced-circulation Water-tube | 2008 | Shangluo Zinc Smelter of Shaanxi Zinc Industry Co., Ltd. |
| Zinc Concentrate Waste Heat Boiler | 28 | 4 | 252 | Forced-circulation Water-tube | 2008 | Bayannur Zijin Nonferrous Metals Co., Ltd. |
| Zinc Concentrate Waste Heat Boiler | 28 | 4 | 252 | Forced-circulation Water-tube | 2008 | Inner Mongolia Geological Prospecting Co., Ltd. |
| Lead Smelting Furnace Waste Heat Boiler (Ausmelt Furnace) | 49.4 | 4 | 256 | Forced-circulation Water-tube | 2008 | Yunnan Tin Nonferrous Metals Company |
| Zinc Concentrate Waste Heat Boiler | 28 | 4 | 252 | Forced-circulation Water-tube | 2007 | Huludao Zinc Plant |
| QCF21/1000-8-4.0 | 12 | 4 | 256 | Forced-circulation Water-tube | 2007 | Hexigten Banner, Inner Mongolia |
| Fuming Furnace Waste Heat Boiler | 8 | 4 | 256 | Forced-circulation Water-tube | 2007 | Hexigten Banner, Inner Mongolia |
| Zinc Concentrate Waste Heat Boiler | 15 | 2.8 | 40 | Forced-circulation Water-tube | 2006 | Chifeng Smelter |
| Volatilization Kiln Waste Heat Boiler | 5.5 | 1.27 | 194 | Natural Circulation | 2006 | Shuikoushan Nonferrous Metals Co., Ltd. |
| Integrated Device of Fuming Furnace Waste Heat Boiler | 15.3 | 3.9 | 256 | Natural Circulation | 2006 | Dongling Group Co., Ltd. |
| Zinc Concentrate Waste Heat Boiler | 28 | 4 | 252 | Forced-circulation Water-tube | 2005 | Bayannur Zijin Nonferrous Metals Co., Ltd. |
| Zinc Roasting Waste Heat Boiler | 20 | 4 | 252 | Forced-circulation Water-tube | 2005 | Mengzi Mining and Metallurgy Co., Ltd. |
| Zinc Volatilization Kiln Waste Heat Boiler | 8 | 0.8 | 175 | Forced-circulation Water-tube | 2005 | Mengzi Mining and Metallurgy Co., Ltd. |
| Zinc Concentrate Waste Heat Boiler | 8 | 3.82 | 250 | Forced-circulation Water-tube | 2004 | Chengzhou Zinc Industry Co., Ltd. |
| Integrated Device of Fuming Furnace Waste Heat Boiler | 15.3 | 3.9 | 256 | Natural Circulation | 2004 | Huludao Zinc Plant |
| QCF35/1010-17.5-4.4 (Osas) | 17.5 | 4.4 | 256 | Forced-circulation Water-tube | 2003 | Yunnan Metallurgical Group Co., Ltd. |
| QCF35/1250-30-4.2 (Fuming Furnace) | 30 | 4.2 | 255 | Forced-circulation Water-tube | 2003 | Yunnan Metallurgical Group Co., Ltd. |
| QCF16/1000-8-4.0 | 8 | 4 | 256 | Forced-circulation Water-tube | 2003 | Shuikoushan Nonferrous Metals Co., Ltd. |
| Integrated Device of Fuming Furnace Waste Heat Boiler | 15.3 | 3.9 | 256 | Natural Circulation | 2003 | Shuikoushan Nonferrous Metals Co., Ltd. |
| Zinc Concentrate Waste Heat Boiler | 9 | 3.2 | 450 | Forced-circulation Water-tube | 2002 | Xiangfen Nonferrous Metals Base |
| Zinc Concentrate Waste Heat Boiler | 7.5 | 3.82 | 450 | Forced-circulation Water-tube | 2002 | Chifeng Smelter |
| Zinc Concentrate Waste Heat Boiler | 6 | 3.82 | 250 | Forced-circulation Water-tube | 2002 | Chengzhou Zinc Industry Co., Ltd. |
| Zinc Concentrate Waste Heat Boiler | 8 | 2.45 | 225 | Forced-circulation Water-tube | 2001 | Wenzhou Smelter |
| Zinc Concentrate Waste Heat Boiler | 14 | 2.45 | 225 | Forced-circulation Water-tube | 2001 | Sichuan Hongda Co., Ltd. |
| Zinc Concentrate Waste Heat Boiler | 8 | 3.82 | 250 | Forced-circulation Water-tube | 2001 | Sichuan Chemical Company Limited |
| QCF16/1000-8-4.0 | 8.5 | 4 | 256 | Forced-circulation Water-tube | 2001 | Chizhou Nonferrous Metals Company |
| QCF16/1000-8-4.0 | 8 | 4 | 256 | Forced-circulation Water-tube | 2001 | Henan Yuguang Gold and Lead Group Co., Ltd. |
| Zinc Concentrate Waste Heat Boiler | 5.2 | 2.5 | 234 | Forced-circulation Water-tube | 1993 | Huludao Zinc Plant |
