Oil & Gas Boiler
The business of the waste heat boiler section focuses on system solutions for waste heat and residual heat utilization, as well as the design, installation, operation and EPC of complete sets of waste heat recovery equipment. The main industries and product varieties involved include: waste heat boilers for dry quenching of coke, waste heat boilers for the non-ferrous metal smelting industry, waste heat boilers for catalytic cracking in the petrochemical industry, waste heat boilers for hydrogen production units, waste heat boilers for reheating furnaces, waste heat boilers for sulfur units (fire tube boilers), waste heat boilers for sintering, waste heat boilers for steel plant converters and electric furnaces, heat recovery steam generators for gas-steam combined cycle (HRSG) and other waste heat utilization solutions in various industries.
Cooperation Cases

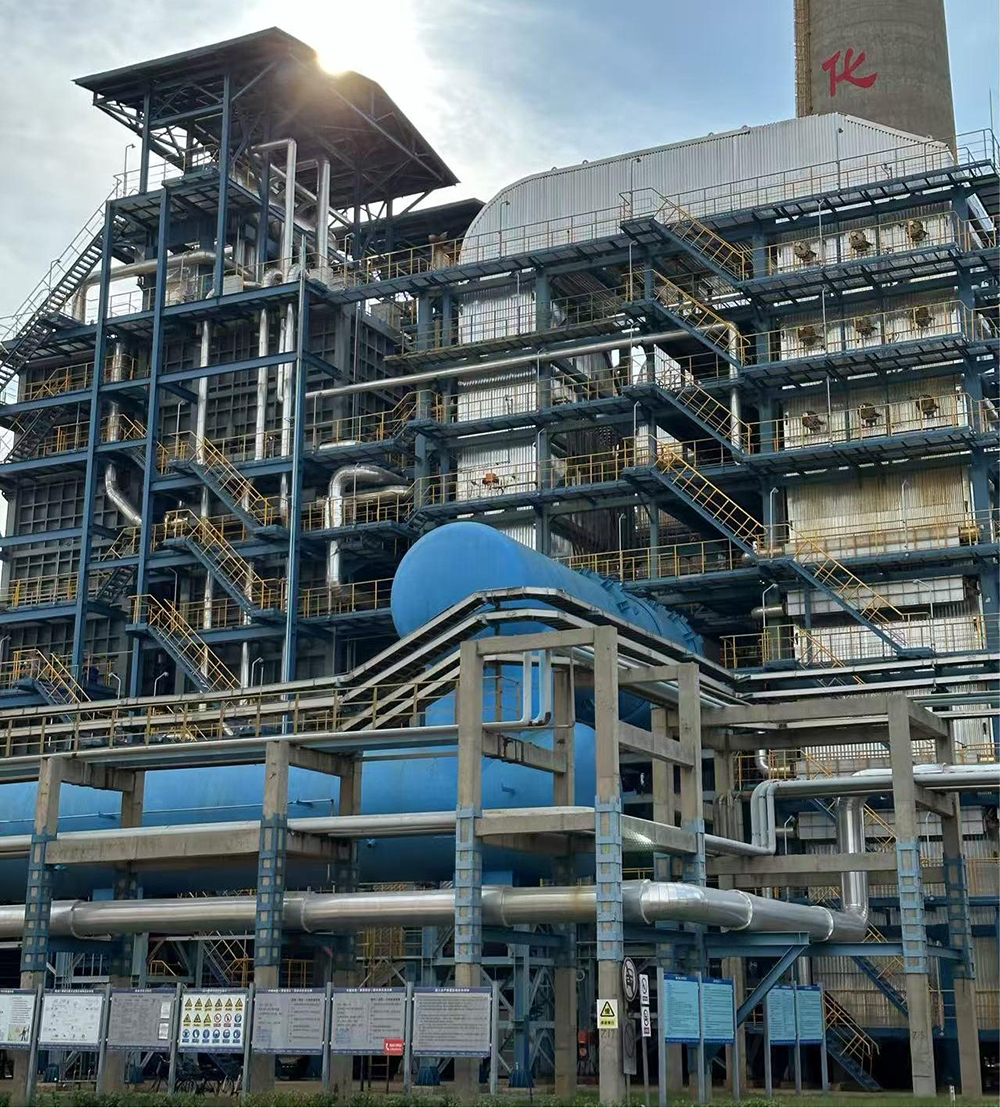

Supplementary Combustion CO Waste Heat Boiler (305-B-501A/B) for 2.8 Million T/Y Heavy Oil Catalytic Cracking Unit, Sinopec Hainan Refining & Chemical Co., Ltd.
The supplementary combustion CO waste heat boiler features an adiabatic furnace, natural circulation, micro-positive pressure, outdoor installation, fully welded structure, and an all-steel-framed single-drum π-type configuration. It is designed to recover energy from high-temperature flue gas generated by the heavy oil catalytic cracking unit. Operating parameters: working pressure 3.82 MPa; working temperature 420°C.

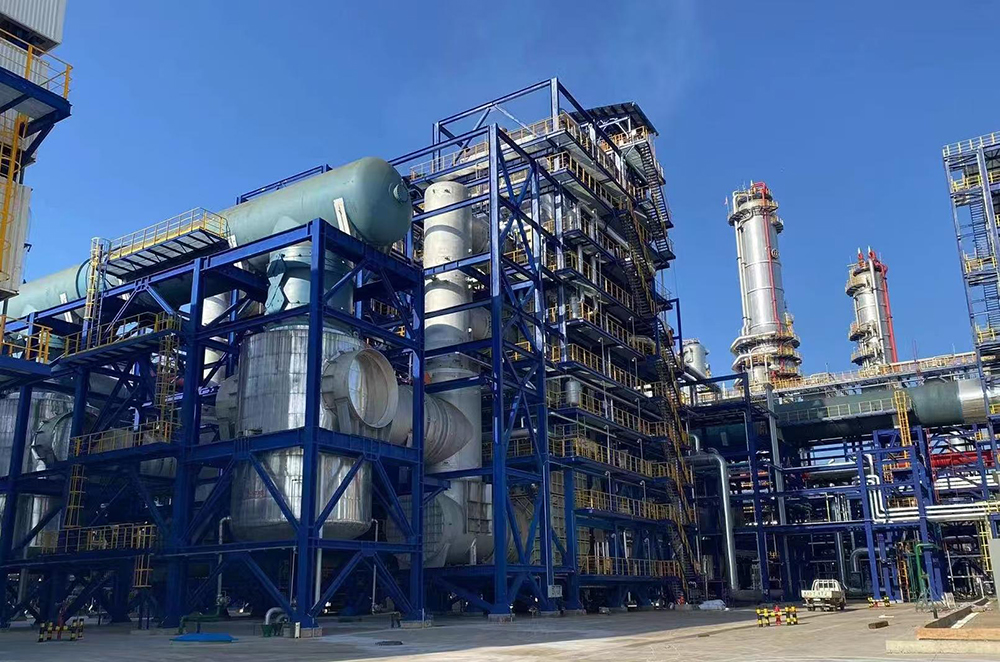

Waste Heat Boiler for 3.0 MMTPA Heavy Oil Catalytic Pyrolysis Unit, Sinopec Anqing Branch Refinery Conversion Project
Operating mode: Slightly positive pressure
Circulation type: Natural circulation
Boiler configuration: Modular design
Superheated steam flow: 73-113 t/h
Rated steam pressure: 4.3 MPa
Rated steam temperature: 420°C

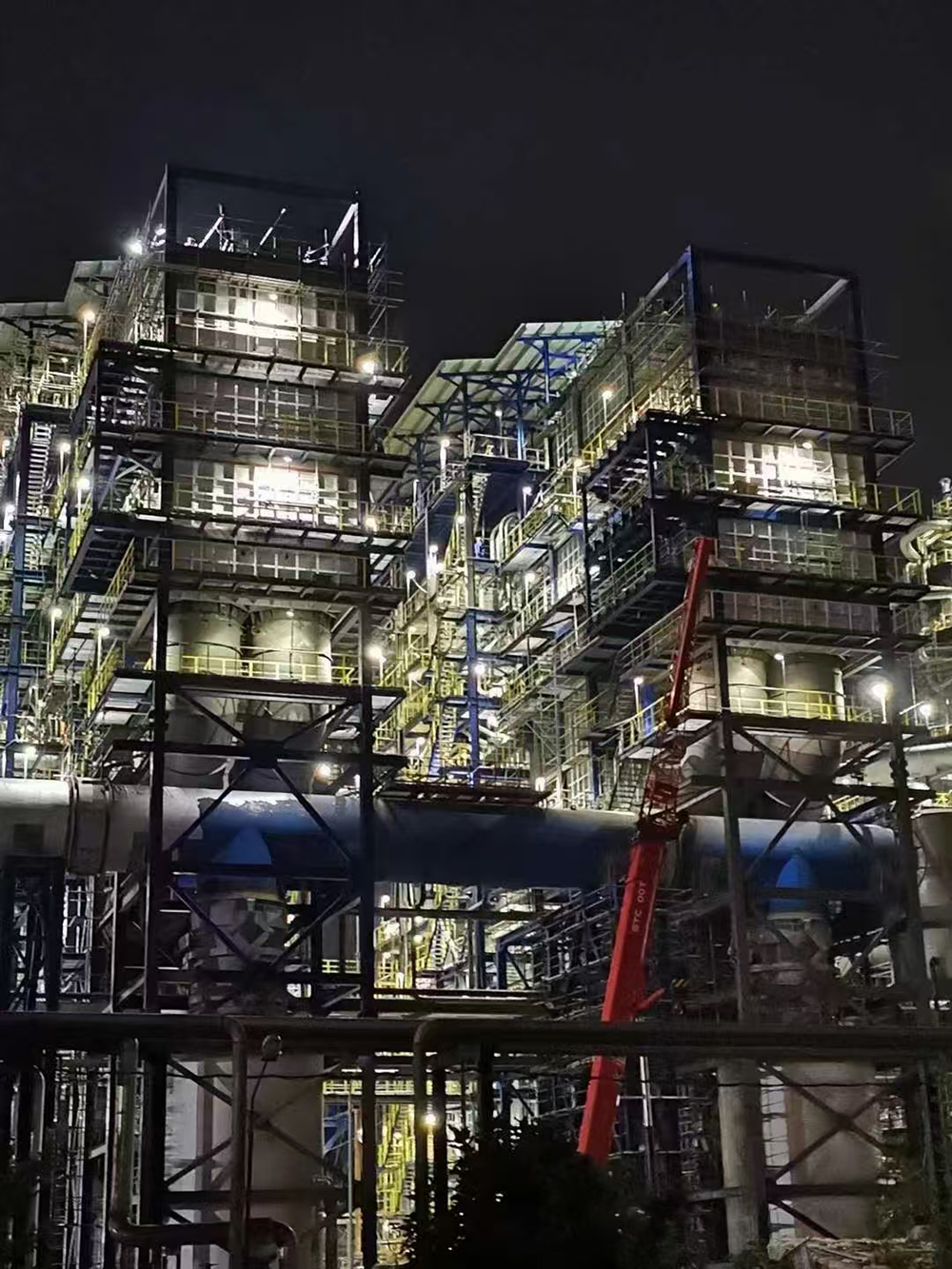

Supplementary-Fired CO Waste Heat Boiler for the 2.8 MMTPA FCC Unit at Sinopec Tianjin Petrochemical Refinery
Operating mode: Slightly positive pressure
Circulation type: Natural circulation
Boiler Structure: Single-drum π-type waste heat boiler
MP Steam Pressure：3.8 MPa
MP Steam Temperature：420℃

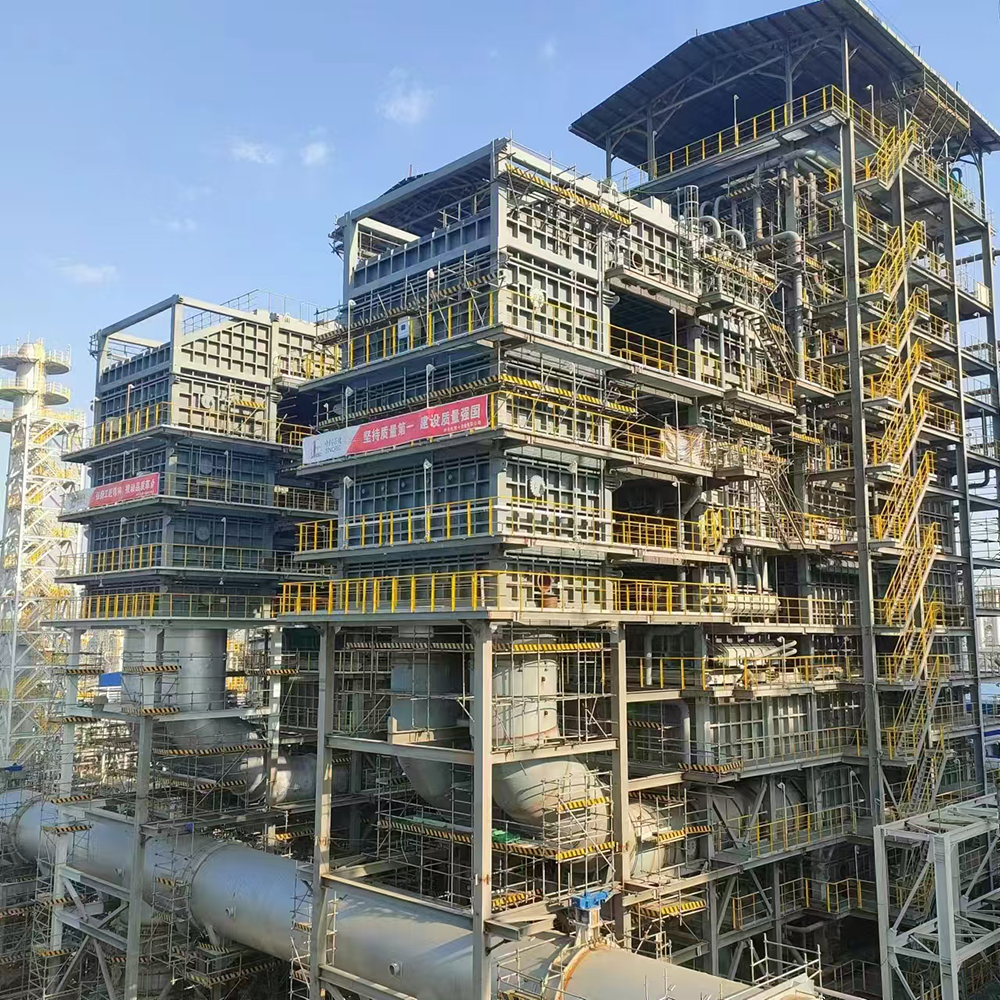

Combustion-type CO Waste Heat Boiler for the 2.8 MMTPA Catalytic Cracking Unit at Sinopec Yangzi Petrochemical Refinery Project, Nanjing
Operating mode: Slightly positive pressure
Circulation type: Natural circulation
Boiler Structure: Single-drum π-type waste heat boiler
MP/HP Steam Pressure：4.5 / 9.8 MPa
MP/HP Steam Temperature：420/540℃

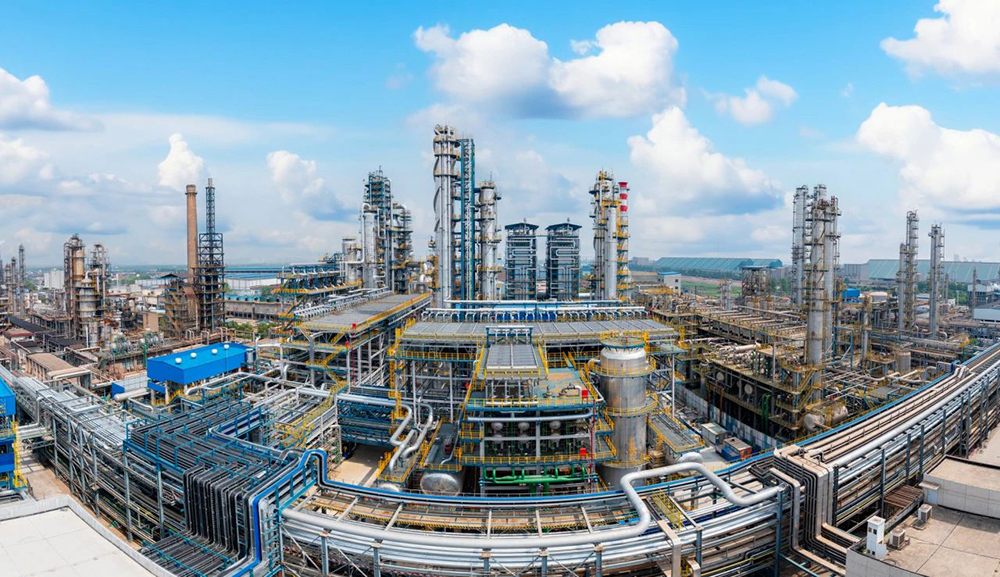

Sino-Korean (Wuhan) Petrochemical Co., Ltd. 2.8 Million Tons/Year Catalytic Cracking Waste Heat Boiler
Historical Evolution of Refinery Catalytic CO Waste Heat Boilers
Initial Development: 1996: Commenced design and manufacturing
Boiler Configuration Evolution:
1.Early Stage - Drum-Type (D-Type Boiler)
Upper and lower drum configuration
2.Modular Design
Representative: Luoyang Petrochemical Engineering Company (LPEC)
Features: Separate combustion chamber and waste heat boiler modules
3.Π-Type Design
Representative: Beijing Petrochemical Engineering Company (BPEC)
Features: Integrated combustion chamber as part of the waste heat boiler structure
| Performance List of FCC Waste Heat Boilers | ||||||
| Project Name | Evaporation Capacity (t/h) | Rated Pressure (MPa) | Rated Temperature (℃) | Boiler Type | Year of Manufacture | User Unit |
| 4.2 Million Tons Per Year High Propylene Catalytic Cracking Waste Heat Boiler | 155 | 4.2 | 410 | Natural Circulation | 2024 | North Huajin Refining and Petrochemical Company Limited |
| 3 Million Tons Per Year Catalytic Cracking Unit Waste Heat Boiler | 130 | 4 | 430 | Natural Circulation | 2024 | SINOPEC Maoming Petrochemical Company |
| 2.8 Million Tons Per Year Catalytic Cracking Waste Heat Boiler | 155 | 9.8/4.5 | 530/420 | Natural Circulation | 2022 | Sinopec Yangzi Petrochemical Co., Ltd. |
| 2.8 Million Tons Per Year Catalytic Cracking Waste Heat Boiler | 150 | 9.8 | 530/420 | Natural Circulation | 2021 | Yangzi Petrochemical |
| 2.8 Million Tons Per Year Catalytic Cracking Unit | 156 | 3.82 | 420 | Supplementary-Fired | 2021 | SINOPEC Hainan Petrochemical Co., Ltd. |
| 3 Million Tons Per Year Catalytic Cracking Waste Heat Boiler | 125 | 3.82 | 420 | Natural Circulation | 2021 | SINOPEC Anqing Petrochemical Branch |
| 3 Million Tons Per Year Catalytic Cracking Waste Heat Boiler | 50 | 3.82 | 420 | Natural Circulation | 2020 | PETROCHINA GUANGDONG PETROCHEMICAL COMPANY |
| 2.8 Million Tons Per Year Catalytic Cracking Waste Heat Boiler | 153.7 | 9.8 | 530/420 | Natural Circulation | 2020 | SINOPEC-SK (WUHAN) PETROCHEMICAL COMPANY LIMITED |
| 4.2 Mt/a Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 205 | 4.2 | 420 | Natural Circulation | 2019 | SINOPEC Zhongke Refining & Petrochemical Co., Ltd. |
| 1.2 Mt/a Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 55 | 3.8 | 420 | Natural Circulation | 2019 | SINOPEC Guangxi Beihai Petrochemical Co., Ltd. |
| 1.0 Mt/a Fluid Catalytic Cracking (DCC) Waste Heat Boiler | 18-30 | 9.5 | 520 | Natural Circulation | 2019 | Shandong Lihuayi Lijin Refining & Petrochemical Co., Ltd. |
| 0.2 Mt/a High-performance Carbon Material and Supporting Project Waste Heat Boiler | 94 | 9.8 | 545 | Natural Circulation | 2019 | Shandong Chambroad Petrochemical Co., Ltd. |
| 2.2 Mt/a Deep Catalytic Cracking (DCC) Waste Heat Boiler | 106 | 3.82 | 530 | Natural Circulation | 2018 | Daqing Longyou Petrochemical Co., Ltd. |
| 2.8 Mt/a Fluid Catalytic Cracking (FCC) | 148 | 3.82 | 470 | Supplementary-Fired | 2018 | SINOPEC Tianjin Petrochemical Co., Ltd. |
| 1.7 Mt/a Deep Catalytic Cracking (DCC) Waste Heat Boiler | 70 | 4 | 500 | Supplementary-Fired | 2017 | China-Anshun United Coal Chemical Co., Ltd. MTO Project |
| 1.8 Mt/a Fluid Catalytic Cracking (FCC) | 169 | 3.82 | 470 | Supplementary-Fired | 2017 | SINOPEC Jinan Petrochemical Co., Ltd. |
| 0.8 Mt/a Catalytic Reforming | 78 | 4.02 | 348 | Natural Circulation | 2012 | Ningxia Baota Petrochemical (Group) Co., Ltd. |
| 2.2 Mt/a Fluid Catalytic Cracking (FCC) | 84 | 3.82 | 420 | Natural Circulation | 2012 | SINOPEC Shijiazhuang Petrochemical Co., Ltd. |
| 2.0 Mt/a Deep Catalytic Cracking (DCC) Waste Heat Boiler | 67.18 | 4.6 | 450 | Forced Circulation | 2011 | Shaanxi Yanchang Zhongmei Yulin Energy & Chemical Co., Ltd. |
| 2.0 Mt/a Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 71 | 4.22 | 415 | Forced Circulation | 2011 | China Petrochemical Corporation Maoming Petrochemical Branch |
| 2.0 Mt/a Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 92.3 | 4.1 | 420 | Natural Circulation | 2011 | SINOPEC Anqing Petrochemical Branch |
| Catalytic Cracking Waste Heat Boiler | 3.7 | 2.3 | 240 | Forced Circulation | 2010 | Tenglong Aromatics (Xiamen) Co., Ltd. |
| Combustion-type CO Waste Heat Boiler | 24 | 4.6 | 400 | Self-Heating Circulation | 2010 | Zhongyuan Petrochemical MTO Project |
| Medium-Pressure Fire-Tube Waste Heat Boiler | 7.82 | 4.8 | 310 | Self-Heating Circulation | 2010 | Zhongyuan Petrochemical MTO Project |
| Low-Pressure Fire-Tube Waste Heat Boiler | 6.75 | 0.5 | 220 | Self-Heating Circulation | 2010 | Zhongyuan Petrochemical MTO Project |
| 1.4 Mt/a Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 27.25 | 3.82 | 430 | Forced Circulation | 2009 | PETROCHINA Liaohe Petrochemical Branch |
| Catalytic Cracking Waste Heat Boiler | 32.29 | 3.82 | 430 | Forced Circulation | 2009 | PETROCHINA Liaohe Petrochemical Branch |
| Converter Waste Heat Boiler | 45 | 5.3 | 256 | Natural Circulation | 2007 | Shanghai Gaoqiao Petrochemical |
| Converter Waste Heat Boiler | 45 | 5.3 | 256 | Natural Circulation | 2005 | Shanghai Gaoqiao Petrochemical |
| 0.3 Mt/a Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 20.5 | 3.82 | 450 | Natural Circulation | 2004 | SORALCHIN (Algeria) |
| 48 t/h Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 48 | 3.82 | 420 | Natural Circulation | 2003 | PETROCHINA Jinzhou Petrochemical Branch |
| 35 t/h Waste Heat Boiler | 35 | 3.82 | 420 | Natural Circulation | 2003 | Jinzhou Petrochemical Co., Ltd. |
| 7 t/h Modular Petrochemical Waste Heat Boiler | 7 | 3.82 | 445 | Natural Circulation | 2003 | Xi'an Petrochemical General Plant |
| Converter Waste Heat Boiler | 45 | 5.3 | 256 | Natural Circulation | 2003 | Shanghai Gaoqiao Petrochemical |
| 50 t/h Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 50 | 3.82 | 420 | Natural Circulation | 2001 | PETROCHINA Liaohe Petrochemical Branch |
| Catalytic Cracking Waste Heat Boiler | 8 | 1.27 | 250 | Forced Circulation | 2001 | Shandong Shenghua Refinery |
| 2.0 Mt/a Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 180 | 3.82 | 420 | Natural Circulation | 1998 | Daqing Auxiliary Factory |
| 1.8 Mt/a Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 170 | 3.82 | 420 | Natural Circulation | 1998 | Khartoum Refinery (Sudan) |
| 2.0 Mt/a Heavy Oil Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 180 | 3.82 | 420 | Natural Circulation | 1997 | Beijing Yanshan Petrochemical General Plant |
| 65 t/h CO Waste Heat Boiler | 65 | 3.82 | 420 | Natural Circulation | 1997 | Yanlian Industrial Group Co., Ltd. |
| 70 t/h CO Combustion-type Waste Heat Boiler | 70 | 3.82 | 420 | Natural Circulation | 1997 | Yanlian Industrial Group Co., Ltd. |
| 0.08 Mt/a Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 5 | 1.27 | 250 | Natural Circulation | 1995 | Wuxi Petrochemical General Plant |
| Catalytic Process Waste Heat Boiler | 15 | 1.27 | 250 | Forced Circulation | 1994 | Fushun No.2 Petroleum Plant |
| Catalytic Cracking Waste Heat Boiler | 12 | 1.27 | 270 | Forced Circulation | 1994 | Shanghai Refinery |
| 0.8 Mt/a Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 40 | 3.82 | 410 | Forced Circulation | 1994 | Yangzi Petrochemical Company |
| 1.2 Mt/a Fluid Catalytic Cracking (FCC) Waste Heat Boiler | 30 | 3.82 | 450 | Forced Circulation | 1994 | Anqing Petrochemical Company |
| Catalytic Cracking Waste Heat Boiler | 17 | 1.27 | 230 | Natural Circulation | 1994 | Nanjing Refinery |
| Catalytic Cracking Waste Heat Boiler | 9 | 1.27 | 250 | Natural Circulation | 1993 | Karamay Refinery |
| Hydrogen Production Reformer Waste Heat Boiler | 52.78 | 3.7 | 435 | Forced Circulation | 1993 | Dalian West Pacific Petrochemical Company |
| Catalytic Cracking Waste Heat Boiler | 14 | 1.27 | 250 | Natural Circulation | 1992 | Cangzhou Refinery |
| Catalytic Cracking Waste Heat Boiler | 6.4 | 1.27 | 250 | Natural Circulation | 1992 | Yumen Refinery |
| Reformate Steam Waste Heat Boiler | 2.15 | 2.45/1.9 | 250/800 | Forced Circulation | 1992 | Jinxi Refining & Petrochemical General Plant |
| Catalytic Cracking Waste Heat Boiler | 5.4 | 1.27 | 250 | Natural Circulation | 1991 | Urumqi Petrochemical General Plant |
| Catalytic Cracking Waste Heat Boiler | 2.7 | 1.27 | 250 | Natural Circulation | 1990 | Yan'an Refinery |
